SKF TKSA 31 Laser Shaft Alignment System

SKF TKSA 31 Laser Shaft Alignment System (New) - Sale!

SKF TKSA 31 Laser Shaft Alignment System (New) - Sale!

SKF

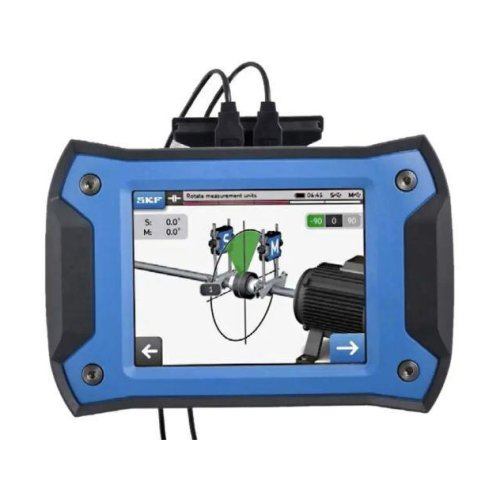

An ergonomic display unit with touch screen which makes the instrument very easy to use

$1,989.90

5.0

Reviews (1)

100% of buyers have recommended this.

Total Price:

Add to Cart Buy Now

Free Shipping

Wired laser shaft alignment system

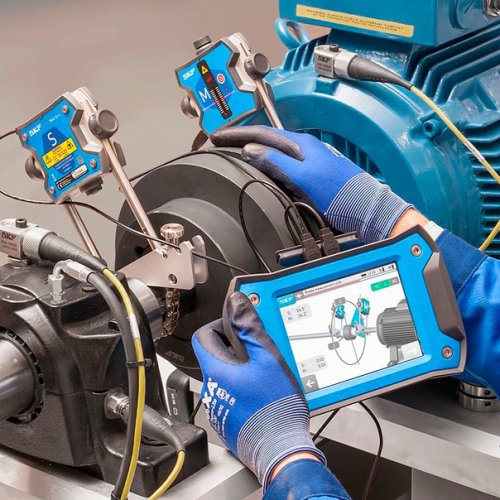

The TKSA 31 has an ergonomic display unit with touch screen which makes the instrument very easy to use. The built-in machine library helps storing alignment reports for multiple machines. Large sized laser detectors in the measuring heads reduce the need for pre-alignments. The embedded soft foot tool helps establish the foundation for a successful alignment. Additional functions are live view and automatic measurement.

Easy measurements with well-known three position measurement method (9-12-3 o’clock) with additional positioning flexibility of 40° around each measurement position
Focus on standard alignment process results in high affordability and effective shaft alignments
Automatic measurement enables hands-free measurements by automatic detection of the right measurement position
Automatic reports are created after each alignment and stored in the machine library. All reports can be exported as pdf

Dimensions

Maximum coupling height	4.134 in
Maximum coupling height with extension	7.677 in
Total product weight	11.067 lb

Properties

Alignment methods	3 position measurement 9 -12 -3 (140° shaft rotation needed) Automatic measurement
Recommended applications	Horizontal shafts Soft foot
Live correction values	Vertical and horizontal
Special features	Machine library Screen orientation flip Automatic .pdf report
Sensors	29 mm CCD Inclinometer ±0.5°
Communications	Wired with USB cables
Measurement distance	0.07 to 2 m (up to 4 m with USB extension cables)
Measuring error (percent)	0.5 %
Material	Display unit: High impact PC/ABS plastic with over mould Measurement units: glassfiber filled PC
Battery	Measuring units: no batteries Display unit: rechargeable 5000 mAh LiPo battery
Battery life	7
Operating temperature range	32.0 – 113.0 °F
Display	5.6" colour resistive touchscreen LCD display
Software update	Via USB stick
Laser type	Red line

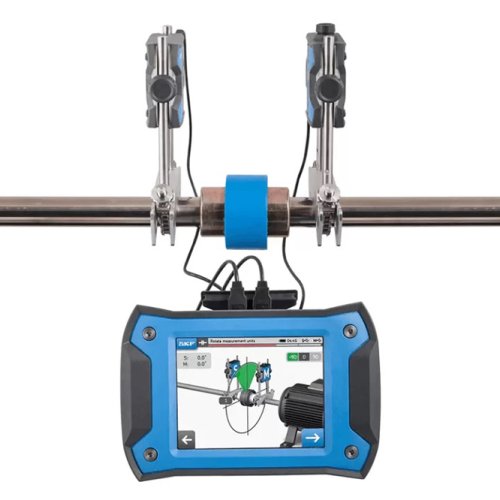

Mounting	2x V-brackets (width 21 mm) with chains
Shaft diameter	20 to 150 mm
Shaft diameter with extension	Up to 300 mm with optional extension chains (not included)
Power adapter	Input: 100V-240V, 50/60Hz AC with country adpaters for EU, US, UK, AUS included Output: DC 12V 3A
Degree of protection (IP)	IP 54
Certifications	Calibration certificate (2 years validity)
Part of a kit	no
Case dimensions (l x h x w)	530 x 110 x 360 mm (20.9 x 4.3 x 14.2 in.)

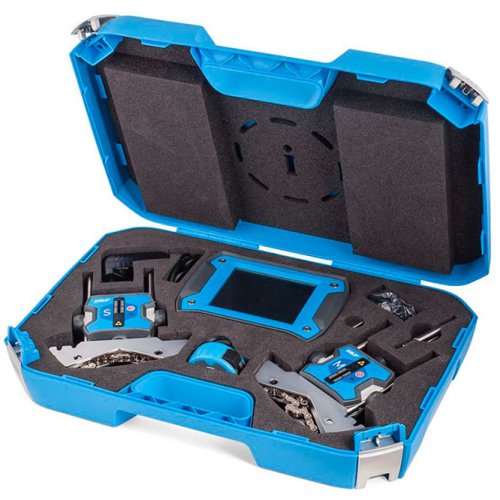

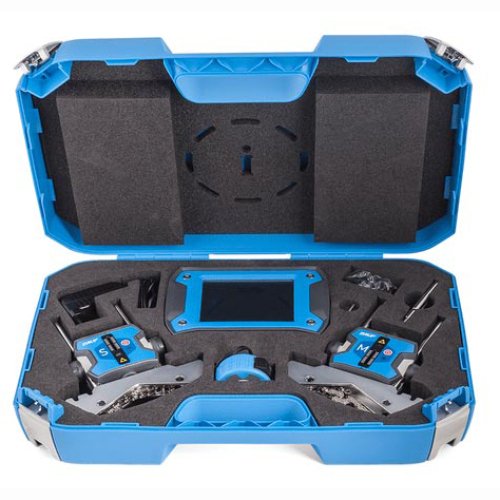

Content	Set of 2 Measuring units (M and S) Display unit Set of 2 shaft brackets with chains 400 mm (15.8 in) and threaded rods 150 mm (5.9 in) Chain tightening rod Power supply with various country adapters Set of 2 USB cables Measuring tape Certificate of calibration and conformance Quick start guide SKF carrying case
