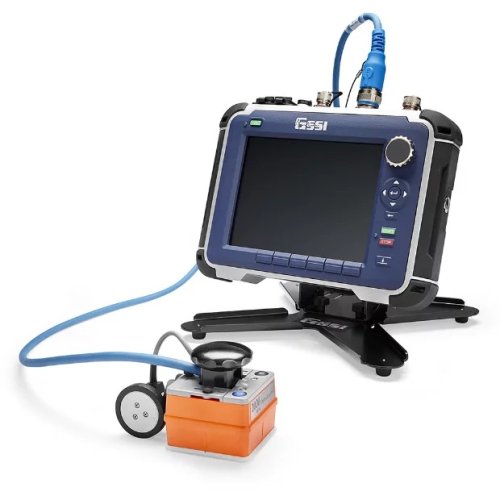

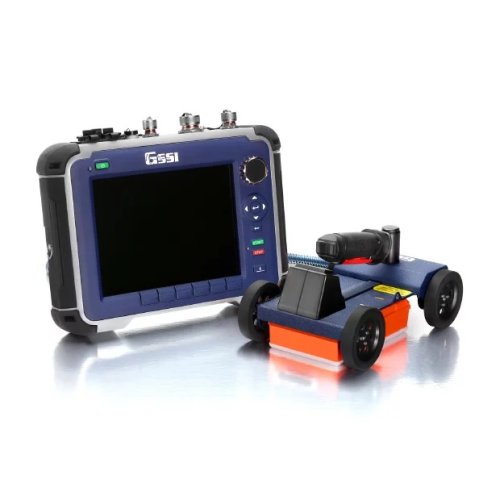

GSSI StructureScan Pro SIR 4000 Stand (New) - Sale!

StructureScan Pro is a versatile concrete inspection system offering a wide variety of antenna options for concrete and other applications. Based on the SIR 4000 controller, the StructureScan Pro provides the GPR professional with solutions to any scanning situation.

• MAX DEPTH
  46 cm (18 in)
• ANTENNA OPTIONS/ ANTENNA FREQUENCY
  1600 MHz, 2600 MHz
• WEIGHT
  9.07 kg (20 lbs)
• STORAGE CAPACITY
  32 GB
• OPTIONAL SOFTWARE
  RADAN 7
• ACCESSORIES
  Palm Antenna, SIR 4000 stand,
  SIR 4000 carry harness

Accurate, reliable, and safe concrete imaging

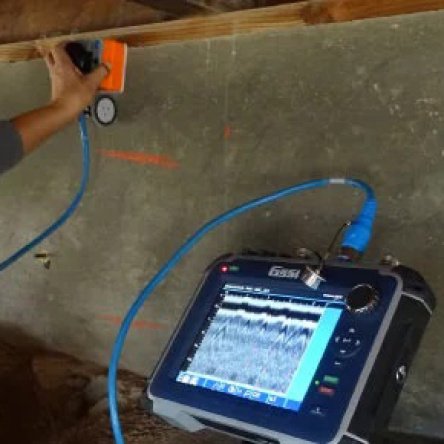

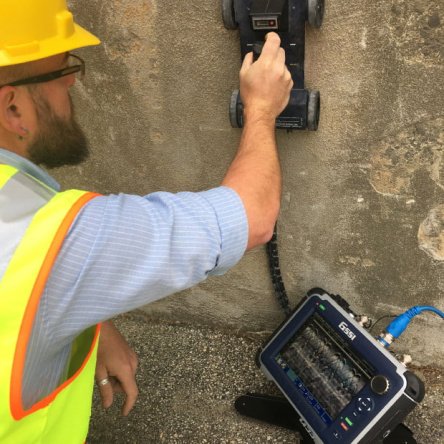

The StructureScan Pro system provides a non-destructive means to accurately inspect concrete and concrete structures, measure slab thickness and locate voids.

Locate Targets in Concrete
The StructureScan Pro locates rebar, post tension cables, PVC and metal conduits, and voids.

Premium Mobility
The rugged handcart-based system is lightweight and simple to transport. GPR is a safe technology with no site hazards or the need to close off work areas as with radiography (X-Ray).

Fully Customizable System
The StructureScan Pro comes with two antenna options; 1600 MHz or 2600 MHz. Designed to fit your needs, the StructureScan Pro is adaptable to expand survey capabilities, such as bridge and utility applications, with antenna upgrades.

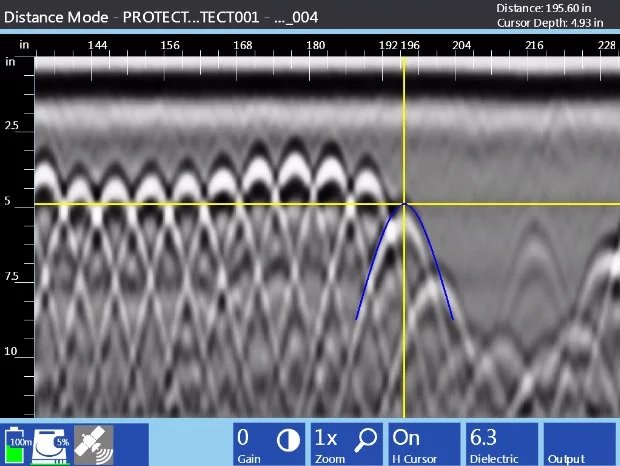

Data Examples

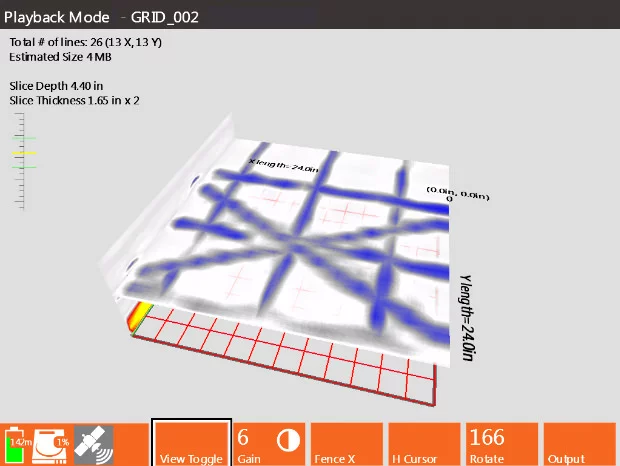

3D Concrete Imaging
Data illustrates a concrete slab reinforced with rebar and post-tension (PT) cables.

• Availability: In Stock
• Model: StructureScan Pro SIR 4000
• Brand:
