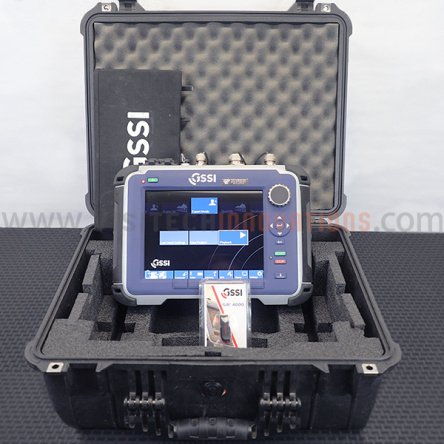

GSSI SIR 4000, Rugged, High-Performance GPR Controller

The SIR 4000 is GSSI first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This evolutionary step allows for true versatility and flexibility by supporting a wide range of users across numerous applications.

Ground penetrating radar control Unit with in-built rugged display. The SIR-4000 is first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This controller bridges the legacy of our traditional analog antennas with our next-generation of digital offerings. Combined, this allows true versatility and flexibility by supporting a wide range of users, beginner to advanced, in numerous applications. It offers unique collection modules, including Quick 3D, UtilityScan, StructureScan and Expert Mode for efficient data collection and visualization. It also incorporates advanced display methods and filtering capabilities for ‘in-the-field’ processing and imaging.

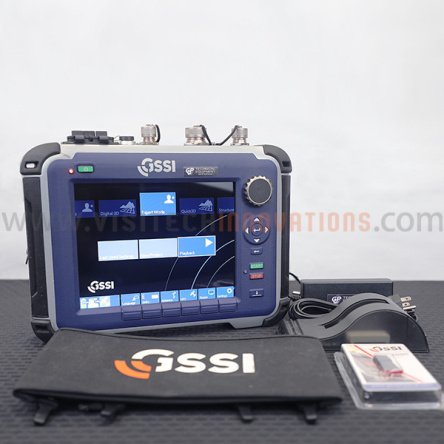

Fully integrated, the SIR 4000 provides a 10.4-inch high-definition LED display, a simple user interface, plug-and-play GPS integration and Wi-Fi-enabled data transfer functionality. The SIR 4000 is designed with a number of exclusive features, including a casted aluminum chassis that offers temperature stability and an impact-resistant design that combined, delivers a full IP 65 rated able to withstand tough jobsite conditions.

GSSI StructureScan Pro SIR-4000 typically used to Scan for rebar, post tension, conduits, and non-metallic objects, Concrete slab scanning, Locate voids, Concrete imaging, Condition assessment, Structural inspection

Accurate, reliable, and safe concrete imaging

The StructureScan Pro system provides a non-destructive means to accurately inspect concrete and concrete structures, measure slab thickness and locate voids.

Locate Targets in Concrete: The StructureScan Pro locates rebar, post tension cables, PVC and metal conduits, and voids.

Premium Mobility: The rugged handcart-based system is lightweight and simple to transport. GPR is a safe technology with no site hazards or the need to close off work areas as with radiography (X-Ray).

Fully Customizable System: The StructureScan Pro comes with two antenna options; 1600 MHz or 2600 MHz. Designed to fit your needs, the StructureScan Pro is adaptable to expand survey capabilities, such as bridge and utility applications, with antenna upgrades.

Real-time Locating: Data illustrates a concrete slab reinforced with wire mesh at varying depths and a conduit.

3D Concrete Imaging: Data illustrates a concrete slab

Spesifications

System: SIR 4000

Antennas: Compatible with all GSSI antennas

Number of Channels: Records data from 1 single-frequency antenna or 1 dual-frequency antenna

Data Storage: 32 GB Flash, 1 GB RAM

Display: 10.4” LED

GPS: Data logged internally

Display Modes: Linescan, Full 3D

Environmental Rating: P64

Data Acquisition

Data Format: RADAN® (dzt)

Output Data Format: 32-bit

Scan Inverval: User-selectable, up to 4000 scans/sec

Number of samples per scan: 256, 512, 1024, 2048, 4096, 8192, 16384

Operatiing Modes: Continuous (time) or survey wheel (distance triggered) or point mode

Time Range: 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8

Standard Real-Time Filters: Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal - Finite Impulse Response (FIR) - Low and High Pass, vertical and horizontal

Advanced Real-Time Filters: Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal

Automactics System Setups: Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations

Automatic Antenna Recognition: Automatic recognition of Smart Antennas to allow maximum compliant transmit rate

Languanges: English, Chinese, Japanese and French

Operating

Operating Temperature: -20°C to 40°C (-4°F to 104°F)

Batttery: Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness)

Transmit Rate: Up to 800 KHz (International) US/Canada and CE rates depend on antenna model

Input/Output

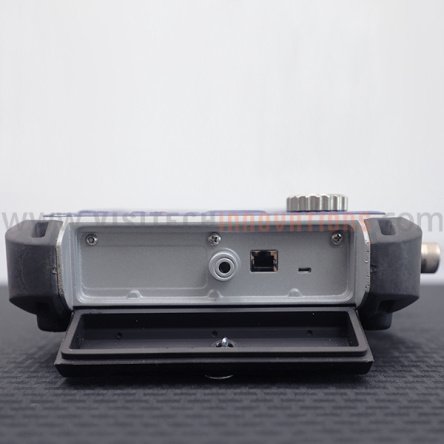

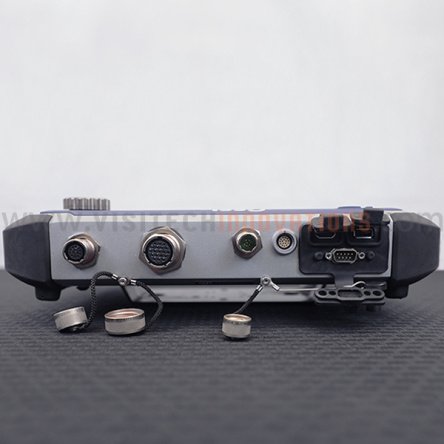

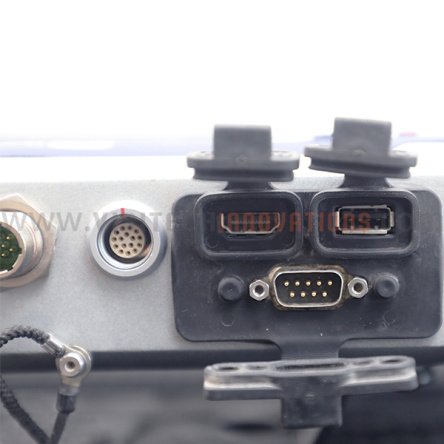

Available Ports: Analog and Digital, RS232, HDMI, Ethernet to PC, USB 2.0 port and mini USB

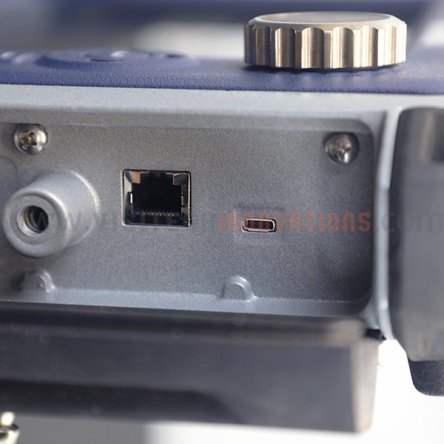

Ethernet: RJ45 100BT Ethernet

Usb Host: Usb host with external keyboard support, USB flash drive support and Usb hub support

Mechanical

Dimensions: 14x10x2.75 in (36x25x7 cm)
