Hamar Laser X-660 3-Axis Laser Alignment (New) - Sale!

The X-660 shaft alignment lasers offer a high-tech laser shaft alignment solution for a very affordable price. Here is a summary:

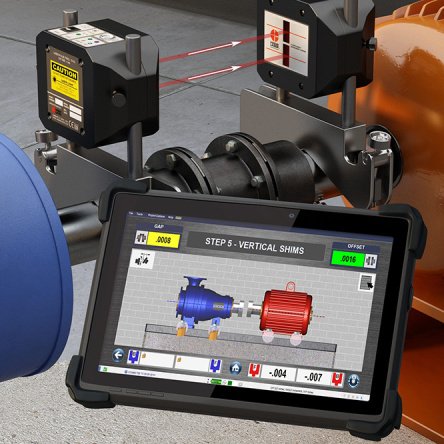

X-660 – A complete shaft alignment laser featuring the advanced L-780 Dual-Fan Laser, T-1280 3-Axis Target, A-970 shaft v-brackets, rugged 10” tablet, and heavy-duty shipping case. It features a Build Your Own (BYO) app selector where you can choose your own apps based upon your individual needs.

The world’s most advanced shaft alignment technology
For over 50 years, we have been providing highly accurate alignment systems to many different industries and applications. We started in the machine tool industry where tolerances are high and applications are difficult, and then 30 years ago we developed the world’s first 4-axis shaft alignment system. All of that experience and knowledge has gone into the design of the X-660 Wireless 3-axis Shaft Alignment System, resulting in the most accurate and yet easy-to use tool in its class.

Advanced Unidirectional Dual-Fan™ Technology
This innovative technology provides an amazing ± 8º of angular range. Utilizing 2 unidirectional laser fans (2 laser fans, 1 direction), it solves the rough-in (pre alignment) problem with “cross-fire” lasers (2 lasers, 2 directions) and makes aligning machines amazingly fast and easy, especially on long-distance applications. The result? More jobs done in less time and happier managers!

No rough-in/pre-alignment needed
All “cross-fire” laser alignment systems require a rough-in (pre-alignment) of the machine before the system be able to take data. With Dual-Fan™ technology’s 2 unidirectional laser fans and 20 mm sensors, you don’t need to rough-in the motor to get it to take data. You get the same measuring range from 2 in. to 15 ft. (50 mm to 4.5 m), unlike the “cross-fire” kits that have virtually no measuring range beyond 5 ft. (1.5 m). So just slap on the brackets, laser and target and get to work!

Fixed angular measuring resolution - great for close-coupled apps
With “cross-fire” laser technology, the angular resolution varies with distance. Ironically, it’s the close coupled applications that cause the most problems for angular accuracy for these systems. With our Dual-Fan™ technology, you get the same high angular resolution at 2 in. (50 mm) between heads as you get at 15 ft. (4.5 m), and our angular resolution is 4x higher than the highest angular spec.

Remote tech support
Utilizing the power of Windows, our tech support department can log on remotely to the tablet, via WiFi and the Internet, and troubleshoot many problems. We can usually resolve most issues with an online session, keeping you productive and potentially saving a lot of money on costly returns for repairs.

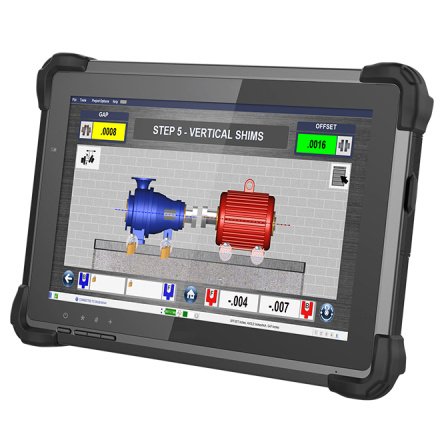

Duo-View™ automatic realtime move screen
Our Duo-View™ realtime move screen and 3-axis target allow you to view a live alignment screen for both alignment planes (4 axes) on the same screen. To switch views, just rotate the shafts to a clock position and the view is automatically switched, and the non-live axis is grayed out so there is no confusion!

Ultra-accuracy means 2x faster alignments
High-resolution PSD technology and 60-point sensor linearization reduce the target error rate to <0.75%, which is up to 5x higher than our competitors’ entry-level lasers and gives you the confidence that when the displays turn green, the motor is aligned as accurately as possible. Higher accuracy also means better repeatability and more accurate shim calculations so you don’t have to keep doing the alignment over and over again. Shim Once, Move Once™!

Build Your Own™ app selector
Pick only the apps you want with your X-660, using our Build Your Own™ app selector to customize your apps to meet your individual needs. We recommend a set of apps and you can check on/off the app and the price estimate and license are updated to reflect your choices!

Easy-Guide™ navigation with onboard manual and training videos
Our Couple6 software features our Easy-Guide™ navigation with its easy-to-follow, high quality screens, leading users through each stage of the alignment. And if you forget how to do something, the manual and training videos are built right into the software! With software this easy to use, a lot of customers start using the X-660 kit right out of the box!

5-year unconditional warranty & low cost of ownership
With no hidden warranty fees like other systems, our 5 Year Unconditional Warranty is really that: no conditions! As long as you don’t damage it by abuse, then if something goes wrong, we replace or fix it. That’s it. We also don’t charge any software maintenance fees. Software updates are free for the life of the product!

Faster Setup, Faster Alignments
Some other systems require up to a 20 minute target-lens setup before they take data. With the X-880/X-990 (use X-660/X-770 for the other page), the bracket posts are pre-aligned to the brackets, so you just attach, the brackets, slide on the laser/target and adjust so the laser goes in the window and in 2-3 minutes, you’re ready to take data!

Included Hardware

A-970 Aluminum Shaft Brackets

Optional Hardware

A-970A Chain Bracket Upgrade

A-970OF Offset Brackets

A-970C-1 Extra Chain Set 1” to 12” (25 to 305 mm) Diam

A-980B Small-Shaft Adapter

A-982 Magnetic Brackets

T-1280B Narrow-Band Light Filter

• Availability: In Stock
• Model: X-660 3-Axis
• Brand:
