The Zoom95 is the true flagship of the GeoMax TPS portfolio. Featuring advanced STReAM360 technology, this one-person total station substantially minimizes the time of any survey task and maximizes your performance and accuracy. Combined with the X-PAD field software, the user-friendly and flexible solution makes it easy to start digitizing your construction site.

Modern Data capturing & handling
No more paper plans. Upload your plans onto the X-PAD Ultimate field software or into the TPS, and conveniently edit the CAD drawings on-site on the big screen of the GeoMax robotic total stations. Big files can be handled easily and fast thanks to the strong performing processor of the Zoom95. With the unique X-TILT feature and the Zenius800, inaccessible points are no longer a challenge. X-TILT automatically calculates a point position by tilting the tablet attached to the prism pole, in two directions.

Seamless workflow with maximum flexibility
X-PAD software, GeoMax field controllers and the Zoom95 robotic TPS are carefully chosen and developed to enable a carefree and efficient workflow. X-PAD gives you the flexibility to choose your preferred operating system and field controller as it is available as fully-featured Android ™ and Windows ® field software running on a multitude of field controllers.

Fully Robotic
With the STReAM360 technology, the Zoom95 easily and quickly finds, locks and traces the prism:

• Scout: Vertical laser fan is emitted from the rotating instrument. As soon as reflections from a prism are received, the Zoom95 accurately aims towards this prism.
• TRack: The target is being continuously tracked. Once locked onto, the instrument remains accurately aimed even on fast moving targets.
• AiM: The Zoom95 aims accurately at any prism, without the need to look through the telescope.

Convenient and safe data management
X-PAD 365, the web-based GeoMax cloud platform, was created to address data management and collaboration challenges surveyors and construction professionals meet every day. Working with the Zoom95, data can be accessed, stored, and shared via the X-PAD 365 File Manager. Your data is always safe, thanks to automatic backups. Furthermore, the Collaborative Survey and Stakeout feature allows several users to work on the same surveying or stakeout project together, sharing real-time surveyed points and drawings and immediately seeing their progress.

Keep X-PAD at its best - select your service
X-PAD Ultimate software is always maintained without any extra costs. By keeping your X-PERT service active, you can continuously profit from the latest software improvements.

Reliable partner
Hexagon is known for driving innovation and technological progress. As a part of this group, GeoMax can guarantee that its solutions work when you do.

Automatically pre-register point cloud data in the field to quickly conduct quality control checks, improve productivity and make better-informed decisions on site.

The Leica RTC360 3D reality capture solution empowers users to document and capture their environments in 3D, improving efficiency and productivity in the field and in the office through fast, simple-to-use, accurate, and portable hardware and software. The RTC360 3D laser scanner is the solution for professionals to manage project complexities with accurate and reliable 3D representations and discover the possibilities of any site.

Highly portable, highly automated, intuitive and designed for maximum productivity, the RTC360 solution efficiently combines the RTC360 a high-performance 3D laser scanner, Leica Cyclone FIELD 360 mobile-device app for edge computing for automatically registering scans in real time, and Leica Cyclone REGISTER 360 office software to integrate your 3D model seamlessly into your workflow.

Capture scans, including enriching High-Dynamic Range (HDR) imagery, in less than two minutes.

Automatically record your moves from station to station to pre-register your scans in the field without manual intervention.

Augment your data capture with information tags illustrating the opportunities for better planning, reflect site reality, and boost your teams’ situational awareness

Directly publish your captured data from Cyclone FIELD 360 to Leica TruView Cloud to quickly exchange project information prior to import and registration.

Fast

The Leica RTC360 laser scanner makes 3D reality capture faster than ever before. With a measuring rate of up to 2 million points per second and advanced HDR imaging system, the creation of coloured 3D point clouds can be completed in under two minutes. Plus, automated targetless field registration (based on VIS technology) and the seamless, automated transfer of data from site to office reduce time spent in the field and further maximise productivity.

Agile

Small and lightweight, the Leica RTC360 scanner’s portable design and collapsible tripod mean it’s compact enough to fit into most backpacks, ready to be taken anywhere. Once on-site, easy-to-use, one-button operation makes for fast, hassle-free scanning.

Precise

Low noise data allows for better images, resulting in crisp, high-quality scans that are rich in detail and ready for use in a range of applications. Combined with Cyclone FIELD 360 software for automated registration in the field, the Leica RTC360 scanner offers outstanding precision that can be checked on-site.

Pre-registraton in the field

As part of the RTC360 solution, the Cyclone FIELD 360 app links the 3D data acquisition in the field with the laser scanner and data registration in the office with Cyclone REGISTER 360. On-site the user can automatically capture, register and examine scan and image data. The user interface combines easy handling of complex calculations with a graphical user guidance that offers a remarkable user experience, also for novice users.

LEICA RTC360 SPECIFICATIONS

GENERAL

3D Laser Scanner: High-speed 3D laser scanner with integrated HDR spherical imaging system and Visual Inertial System (VIS) for real time registration

PERFORMANCE

Data acquisition: <2 mins for complete full dome scan and spherical HDR image at 6mm @ 10 m resolution

Real time registration: Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video- enhanced inertial measurement unit

Double scan: Automatic removal of moving objects

SCANNING

Distance measurement: High-speed, high dynamic time of flight enhanced by Waveform Digitising (WFD) technology

Laser class: 1 (in accordance with IEC 60825-1:2014), 1550 nm (invisible)

Field of view: 360° (horizontal) / 300° (vertical)

Range: Min. 0.5 - up to 130 m

Speed: Up to 2,000,000 pts / sec

Resolution: 3 user selectable settings (3/6/12 mm @ 10 m)

Accuracy: Angular accuracy 18”

Range accuracy: 1.0 mm 10 ppm

3D point accuracy

1.9 mm @ 10 m

2.9 mm @ 20 m

5.3 mm @ 40 m

Range noise: 0.4 mm @ 10 m, 0.5 mm @ 20 m

IMAGING

Camera: 6 MP 3-camera system captures

432 MPx raw data for calibrated 360° x

300° spherical image

Speed: 1 minute for full spherical HDR image at any light condition

HDR: Automatic, 5 brackets

NAVIGATION SENSORS

Visual Inertial System: Video enhanced inertial measuring system to track movement of the scanner position relative to the previous setup in real time

Tilt: IMU based, Accuracy: 3‘ for any tilt

dditional sensors    Altimeter, Compass, GNSS

OPERATION

On scanner: Touch-screen control with finger touch, full colour WVGA graphic display 480 x 800 pixels

Mobile devices: Leica Cyclone FIELD 360 app for iPad or

Android tablets including:

- Remote control of scan functions

- 2D & 3D data viewing

- Tagging

- Automatic alignment of scans

Wireless: Integrated wireless LAN (802.11 b/g/n)

Data storage: Leica MS256, 256 GB exchangeable USB 3.0 flash drive

DESIGN & PHYSICAL

Housing: Aluminium frame and sidecovers

Dimensions: 120 mm x 240 mm x 230 mm / 4.7‘‘ x 9.4‘‘ x 9.1‘‘

Weight: 5.35 kg / 11.7 lbs, nominal (without batteries)

Mounting mechanism: Quick mounting on 5/8“ stub on lightweight tripod / optional tribrach adapter / survey tribrach adapter available

POWER

Internal battery: 2 x Leica GEB361 internal, rechargeable

Li-Ion batteries.

Duration: Typically up to 4 hours

Weight: 340 g per battery

External: Leica GEV282 AC adapter

ENVIRONMENTAL

Operating temperature: -5° to 40°C

Storage temperature: -40° to 70°C

Dust/Humidity: Solid particle/liquid ingress protection IP54 (IEC 60529)

LEICA CYCLONE FIELD 360, VIEW, CHECK, ADD

View: As part of the Leica Geosystems Reality Capture 360 solution, the high- performance Leica Cyclone FIELD 360 mobile-device app is the perfect field companion for the Leica RTC360 3D laser scanner.  With its intuitive user interface, remote scanner control and on-site point cloud display, navigation is a breeze - even for novice users – with full imagery and point cloud data delivered directly to your tablet using edge computing technology.

Check: Direct data access and visualisation are the foundation for quality control in the field; with Cyclone FIELD 360, automatically pre-registered point cloud data enables users to quickly conduct on-site quality control checks, improves productivity and makes for better-informed decisions in the field.

Add: For improved registration in Leica Cyclone REGISTER 360 post-processing, and to add extra value and information to 3D data, Cyclone FIELD 360 enables on-site tagging of measurements, videos, images, text or voice files to the point cloud geometry simply by using your table.

LEICA CYCLONE FIELD 360 SPECIFICATIONS

GENERAL

iOS or Android app    In-the-field app for remote scanner control,

data management, quality control, data tagging

and automatic pre-registration on-site

SCANNER CONTROL

Remote scanner control with access to all control features

DATA MANAGEMENT

Create, edit and delete scan jobs

DATA COMMUNICATION & TRANSFER

Communication    Bi-directional wireless communication between scanner and table

Transfer

QUALITY CONTROL

Automatic transfer of scan data from scanner to tablet; automatic synchronisation of all app created data from tablet to scanner

Point cloud navigation: Navigate single and registered point clouds in 2D map view, 360° panoramic view or in full 3D view

Point cloud display: Display point clouds in full HDR colour, rainbow intensity or grey-scale mapping

Measurement: Take and tag measurements within the point cloud

DATA TAGGING

Add image, video, voice, text or any other file-based tags to point cloud

PRE-REGISTRATION

Auto alignmen: Visual Inertial System (VIS) technology based automated alignment of scan setups for targetless cloud-to-cloud registratiON

Visual alignment: Move and rotate scan setups for a quick visual alignment for cloud-to-cloud registration

INTEROPERABILITY

Sensor hardware: Leica RTC360 laser scanner

Cyclone software

Leica Cyclone REGISTER 360 1.5 or higher, requires active REGISTER 360 license foractivation

SYSTEM REQUIREMENTS

Platform: Android tablet computer running on Android 6.0

or higher, e.g. Samsung Galaxy Tab S3

Apple iPad tablet computer running on iOS 11.1

or higher, e.g. iPad Pro with 10.5“ scree

INCLUDED:

Leica RTC360 Laser Scanner

864 515 Cyclone REGISTER 360 Permanent

4X GEB361 Lithium-Ion battery, 11.1V, 5.6Ah, rechargeable

2X Leica MS256 Industrial USB 3.0 Stick 256GB

Leica GST80 Tripod for RTC360

636 767 Leica RTC360 Rain Cover

Leica GVP736 Backpack for RTC360

Leica GVP730 Transport Container for RTC360

Leica RTC360 USB Documentation Card

Leica GAD120 Tribrach Adapter

Leica GDF323 Tribrach

GKL341 Multi-bay charger Prof 5000, Charges up to 4 batteries, including power cable

310.13-Li-Ion batteries GEB211, GEB212, GEB221, GEB222, GEB241, GEB242, GEB331 and GEB361

AC adapter included, AC power cable to charger for Rugby/Javelin

OmniScan™ X3 64 Phased Array and TFM Flaw Detector with Advanced Capabilities
Power You Can Carry
Housed in the field-proven rugged and portable OmniScan X3 enclosure, the OmniScan X3 64 flaw detector’s powerful focusing capabilities supported by its larger element-aperture capacity enable you to fully exploit 64-element phased array probes and 128-element aperture TFM. Utilize its enhanced performance to meet the inspection challenges of thick and attenuative materials and expand your potential to develop new procedures for a wider range of applications.

Save Time and Energy Screening Welds with the Merged B-Scan
If you’ve ever wondered whether there’s a more efficient way to perform weld screening than simply scrolling through B-scans, you’ll want to hear about our solution. With the MXU 5.13 software update, we introduced an innovative B-scan view for the OmniScan™ X3 series that has the potential to revolutionize this time- and attention-consuming technique. Used as a validation tool, it can give you more confidence in your assessments and help ease the whole B-scan screening process.

Confidence You Can See
The OmniScan X3 flaw detector is a complete phased array toolbox. Powerful tools, including total focusing method (TFM) imaging and advanced visualization capabilities, backed by its high image quality enable you to complete your inspection with greater confidence.

Confirm Your TFM Beam Coverage in Advance
The Acoustic Influence Map (AIM) tool provides you with an instant visual model of the sensitivity based on your TFM mode, probe, settings, and simulated reflector.
The AIM tool takes the guesswork out of creating your scan plan—visualize the effect of a wave set (TFM mode), see where sensitivity stops, and adjust your scan plan accordingly.

See What You’ve Been Missing with PCI
Our innovative amplitude-free live phase coherence imaging (PCI) improves small-defect sensitivity and penetration in noisy materials, all while easing your setup and simplifying sizing. Available on the OmniScan X3 64 flaw detector as of MXU 5.10.

Benefit from 64-Pulser Phased Array
Exploit the full potential of 64-element phased array probes using the OmniScan X3 64 flaw detector to achieve improved resolution at the focal point.
Slide Right: Acquired using a 32-channel OmniScan X3 unit with a 64-element probe (5L64-A32 model), this S-scan is a high-quality image but the resolution reflects the fact that only the middle 32 elements could be used for the focal law.
Slide Left: Using a full 64-element aperture (5L64-A32 probe), the OmniScan X3 64 flaw detector provides better PA resolution at the focal point, enabling you to more easily distinguish indications that are close together or in a cluster.

Access Full 128-Element Aperture TFM
Made possible by new generation electronics, TFM imaging offers better focusing capabilities for smaller indications and an improved signal-to-noise ratio (SNR). With its 128-element aperture capacity, the OmniScan X3 64 model provides enhanced image clarity.
Slide Right: This TFM image was acquired with 64 elements of a 128-element probe (3.5L128-I4 model) using an OmniScan X3 32-channel model.
Slide Left: Here, the OmniScan X3 64 flaw detector enabled us to use the full 128-element aperture of our 3.5 MHz, 128-element I4 probe. Note the improved resolution and reduced background noise.

Acquire up to 4X Faster TFM
Achieve total focusing method (TFM) acquisition speeds of up to 4 times faster when using a 64-element probe. Compared to models with 32 pulsers, the OmniScan X3 64 flaw detector offers a significant improvement in efficiency owing to its larger aperture capability.

Improved Phased Array

• Up to 3x as fast as the OmniScan MX2 flaw detector (max pulse repetition frequency)
• Single TOFD menu for an accelerated calibration workflow
• 800% high amplitude range reduces the need to rescan
• Onboard Dual Linear Array™ and Dual Matrix Array™ probe support accelerates setup creation

Ease Corrosion Monitoring Using Phased Array
Using phased array to inspect corrosion offers many benefits, including excellent coverage and resolution. However, becoming proficient in phased array techniques can be challenging. The OmniScan X3 flaw detector combines advanced functions such as gate synchronization with thoughtfully designed software and simplified menus, so you can obtain accurate data more easily. Configure your setup quickly thanks to its A-scan synchronization processing and manual time-corrected gain (TCG).

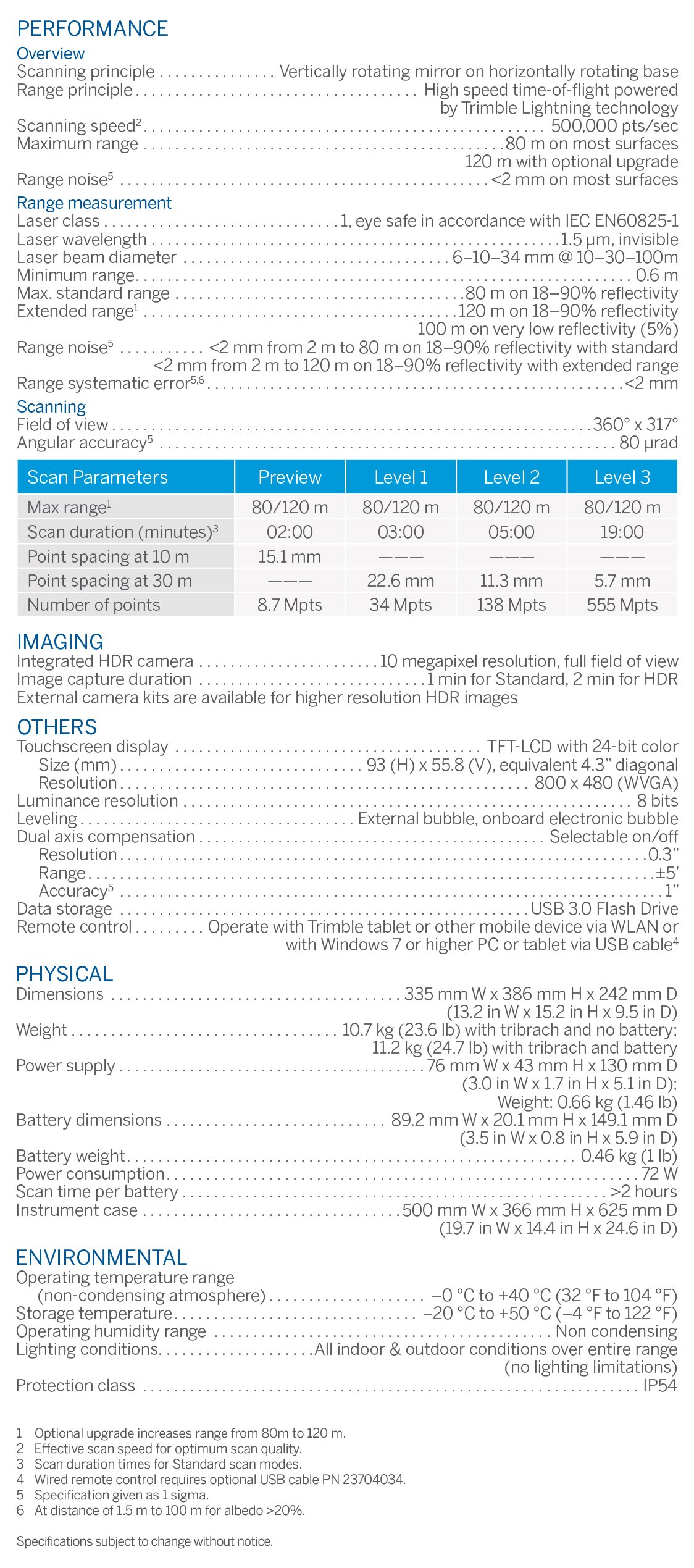

The Trimble® TX8 laser scanner sets new standards for performance and ease of use in high-speed collection of 3D data. Using a state-of-the-art blend of speed, long range and precision, the Trimble TX8 delivers high quality results in civil survey, industrial measurement, engineering and construction. It’s the scanner of choice for high levels of productivity, accuracy and flexibility.

Designed for performance, the Trimble TX8 enables you to complete 3D laser scanning projects faster than ever

• NEW – integrated HDR camera provides fast image capture to colorize scans with minimal impact on field productivity.
• NEW – integrated WLAN to enable wireless remote operation from Windows, Apple and Android mobile devices
• High end performance – ultra-high speed scanning with consistent accuracy over the full scan range. The Trimble TX8 delivers unsurpassed productivity in the field and office with fast, clean scans
• High quality data – quickly capture superior data even in bright sunlight. Be confident you will get the quality data you need with less setups to complete the project
• Long range – benefit from the extended range of 340 meters and gain the versatility to execute a wider range of projects. It’s like having two scanners in one
• Easy to operate – the intuitive on board interface makes the TX8 easy to learn, reducing startup time. Users will immediately build confidence to successfully complete projects

The Trimble TX8 is designed for a broad array of uses and environments.
Typical applications include:
► Civil engineering
► Surveying
► Plant and industrial measurement
► Mining and quarries
► Urban areas
► Preservation and restoration
► Building and commercial construction
► Deformation monitoring
► Quality control
► Public safety and forensics

Unlock a world of subsurface information with one quick scan.
Conquest® 100 allows you to get rapid, reliable results and reduce the need for destructive testing. It is a light, portable device that provides a fast, non-invasive method to gain accurate insights of objects below the concrete surface, even on a curved surface or column.

Conquest® 100 GPR increases safety by detecting rebar, post-tension cables, metallic and non-metallic conduits as well as current-carrying wires embedded in concrete. Once your concrete scan is complete, the system allows you to e-mail information directly from the field in the form of a Wi-Fi mini-report. With the Conquest® 100 Enhanced, you also have the option to add the powerful optional EKKO_Project™ Software to view your data and make client-ready reports in minutes once back in the office.

Features:
High-Resolution Touchscreen: See targets clearly with intuitive on-screen operation
Easy Reporting: Transfer information wirelessly to your smartphone using Wi-Fi
Optional EKKO_Project™ PC Software: Our all-inclusive software solution for managing, displaying, processing and interpreting GPR data.
Swappable Li-Ion Battery: Never lose time with long-lasting swappable batteries.
All-in-one transportation case.
Collect data in a comfortable standing position using the optional resizable handle for the Sensor Head and carry harness for the Display Unit.
Bluetooth remote triggering for easy one-handed operation when using the Conquest® 100 collapsible handle.

Data Collection Modes:
Line Scan
Perform reconnaissance surveys to gain real-time assessment of targets embedded in concrete. Pin-point targets with the backup arrow.

Perform accurate measurements
Classify targets with color coded field interpretations by simply touching the screen
Display position and depth of targets with the touch of a finger

Grid Scan
Perform detailed area mapping to generate on-site 3D images to better visualize embedded objects in complex sites. Select from pre-set grid sizes with varying resolution levels.

Safe Coring, Drilling and Cutting
Detect embedded objects before cutting or coring:
Create detailed scans of concrete floors, decks, columns, walls and ceilings to detect conduits beneath slab-on-grade
On-screen drill locator:
Target coring position and cut with confidence reducing the risk of hitting a conduit.
Color-coded interpretations:
Classify targets with field interpretations right from your display unit

Power Cable Detector (PCD)
Locate power cables that are embedded in concrete within your survey area to mitigate any potential risks when construction works needs to be done. The standard PCD feature built-in the Conquest® 100 augments GPR imaging allowing the user to detect current-carrying utility lines.

Find elusive oil and gas deposits and avoid drilling in the wrong spot, which is expensive and time consuming. The Thermo Scientific™ Niton™ XL3t Ultra Analyzer provides rapid sample analysis in the field so that you can quickly find where deposits are and which ones will prove the most productive. This high-functioning tool offers the superior light element detection required for gas shale applications without helium purge or vacuum. It is also the instrument of choice for positive material identification, delivering exceptional elemental analysis and alloy grade identification in seconds.

The Niton XL3t Ultra Analyzer is ideal for specific applications where faster analysis and lower detection limits are needed. The Ultra advantage is a 45mm² Silicon Drift Detector (SDD) that delivers vast improvements in sensitivity and measurement times– as much as 10-times faster than conventional Si-PIN detectors, and up to 3-times more precise than conventional silicon drift detectors. With its faster analysis, higher precision, and the ability to measure light elements without helium or vacuum assistance, it is the ideal instrument for the following applications:

Oil and Gas Exploration

• Upstream exploration and production
• Rapid, on-site chemical analysis of rocks, cuttings, and cores that can be used for identifying formations and determining mineral composition of the rock
• Inferring mineralogical properties favorable to oil and gas production from data collected in real-time

Mining Exploration

• Early stage exploration: soil survey and outcrop evaluation
• Advanced exploration and drilling: trend analysis to identify decreasing or increasing pattern of elements of interest to make “continue” or “stop” drilling decisions onsite
• Ore deposit modeling/mapping

Positive Material Identification (PMI)

• Fast, accurate alloy analysis and positive alloy grade identification
• Incoming materials inspection, in-process verification, and final product inspection
• Recover lost material traceability
• Isolate finished welds to validate filler material and dilution
• Confirm the integrity of process process piping, valves and reaction vessels

SPECIFICATIONS

Premium performance begins with the most advanced handheld XRF technology available, led by a 55 kV X-ray tube for extra low detection limits on key elements like Ag, Cd, Sn, Sb, and Ba. Up to three automated beam settings provide optimal performance across the entire periodic table from Mg to U. All in a rugged instrument with state-of-the-art software and outstanding thermal dissipation.

IN USE GLOBALLY
Mining
Best-in-class light element performance for ultra low detection limits of elements like Mg, Al, Si, P, and S, while also packing enough power to achieve impressive precision on heavy elements like pathfinders Ag, Sn, Sb, and rare earth elements.

‍Soils
Appropriate filtering to optimize sensitivity — 2x better analysis of cadmium detection than any other XRF!  Packs the industry’s most powerful X-ray tube for superior limits of detection—especially for cadmium, silver, tin, antimony and barium. When combined with the new Z-901 Beryllium, get 13 EPA Priority Pollutant Metals. Operators can upgrade the Z-901 Lithium to include lithium, boron, carbon, nitrogen, fluorine, and sodium in their tests, too.

‍Regulatory Markets
Next-generation connectivity, test data management and reporting for the full range of compliance testing applications, including RoHS, Halogen Free, CPSIA, and lead paint in children’s playgrounds. State-of-the-art data management incorporated into a flexible Android system allows for the greatest customization and data management capabilities.

‍Electric Vehicle and Strategic Metals
The 55 kV operation, rather than the industry typical 50 kV, delivers higher performance for critical “light” REEs and some “heavy” REEs, making it a superior option for REE analysis globally. Read more: SciAps for Electric Vehicle & Strategic Metals.

SciAps XRF analyzers are the lightest ever made, weighing in at just under 3 lbs. with battery. The durable aerospace-grade aluminum frame passes the Oops Test and the falling-from-a-35-foot-tower test. Redesigned housing with improved heat dissipation allows for high throughput testing that our customers demand. A narrow, slender form factor accesses the toughest test locations, with a 2.7″ display for rear viewing of grade and chemistry.

FEATURES

Simple One button is all you need to control the BLK2GO. Turn it on, walk, and the BLK2GO takes millions of accurate measurements to recreate the space around you in 3D.

Sleek: A masterpiece of cutting-edge engineering design.

Award Winning: The winner of multiple industry awards including CES Best of Innovation 2020, the BLK2GO is compact, lightweight, and so easy to use

Grab & Go: The BLK2GO drastically reduces the time needed to plan and scan on-site, and it doesn’t need a tripod or a trained operator

Model with Confidence: BLK2GO data is the foundation for accurate floorplans, BIM models, and 3D visualizations.

GrandSLAM: BLK2GO GrandSLAM technology simplifies mapping spaces in real-time.

Applications: BIM, Construction, Architecture, Archaeology, 3D modelling, Interior design, Film sets, Virtual reality, Visual effects, Game design.

SPECS:

Dual Axis Lidar Home: The smallest dual axis LiDAR available with best-in-class accuracy, enclosed in a fully protected and encapsulated dome that scans up to 420,000 points per second. Both axes constantly spin while scanning.

Multicamera Vision System: The BLK2GO’s vision system is a 12-megapixel detail camera for brilliant high-contrast imagery plus three panoramic cameras for visual navigation via SLAM, point cloud colourisation and capture of panoramic imagery.

The Grandslam: The GRANDSLAM (Simultaneous Localization and Mapping) is a combination of high-speed dual axis LiDAR, multi-camera vision system and an inertial measurement unit that makes the BLK2GO self-navigating.

Lightweight Aluminium Construction: Weighing in 775 grams (1.7 lbs.) with battery, the BLK2GO’s matte-finish aluminum construction allows for excellent dexterity and freedom of movement.

Smart Handle: The BLK2GO’s handle contains WLAN connectivity, a rechargeable battery capable of 45 minutes of continuous scanning, data storage for six hours of scans, a USB-C port for fast data transfer and edge computing.

Advanced Lightguide: The light guide that encircles the BLK2GO is simple, intuitive and communicative to users of all skill levels. It provides user guidance while scanning and communicates the device status and data quality.

** The expert said that the Leica BLK2GO more accurate for flexibility and speed against the Leica BLK360 and Leica RTC360.

INCLUDES:

- 1x BLK2GO Scanner

- 1x BLK2GO Transportation Case

- 3x GEB821 Li-Ion Battery

- 1x GKL821 Multicharger incl. AC-Adapter

- 1x BLK2GO Table Stand

- 1x GEV278 USB C Cable

- 1x BLK2GO Wrist Strap

- 1x BLK2GO Maintenance Plug

- 1x Cover Eject Pin

- 1x BLK2GO Quick Guide

- 1x BLK2GO Live App Info Card

- 1x BLK2GO USB Documentaton Card

The robotic total station solution that makes it easy for you to start digitising your construction site.
The Zoom75 robotic TPS is a smart, affordable choice for both novice and experienced surveyors. As a reliable one-person total station, the Zoom75 has an optional long-range Bluetooth handle, along with the GeoTRAil function that finds your prism based on the GNSS position transferred from your field controller. Combined with the X-PAD field software, the user-friendly and flexible solution makes it easy to start digitising your construction site.

Modern Data capturing & handling
No more paper plans. Upload your plans onto the X-PAD Ultimate field software or into the TPS, and conveniently edit the CAD drawings on-site on the big screen of the GeoMax robotic total stations. Big files can be handled easily and fast thanks to the strong performing processor of the Zoom75. With the unique X-TILT feature and the Zenius800, inaccessible points are no longer a challenge. X-TILT automatically calculates a point position by tilting the tablet attached to the prism pole, in two directions.

Seamless workflow with maximum flexibility
X-PAD software, GeoMax field controllers and the Zoom75 robotic TPS are carefully chosen and developed to enable a carefree and efficient workflow. X-PAD gives you the flexibility to choose your preferred operating system and field controller as it is available as fully-featured Android ™ and Windows ® field software running on a multitude of field controllers.

One-person total station
Equipped with the long-range Bluetooth® handle, the Zoom75 transforms into a true one-person total station. It supports the advanced prism search, based on the GNSS position of the controller, mounted on the pole. As there is no need for special, expensive and power-consuming active prisms, this total station is ideal on any worksite. Zoom75 keeps your pole lightweight and convenient to carry all survey-day long!

Convenient and safe data management
X-PAD 365, the web-based GeoMax cloud platform, was created to address data management and collaboration challenges surveyors and construction professionals meet every day. Working with the Zoom75, data can be accessed, stored, and shared via the X-PAD 365 File Manager. Your data is always safe, thanks to automatic backups. Furthermore, the Collaborative Survey and Stakeout feature allows several users to work on the same surveying or stakeout project together, sharing real-time surveyed points and drawings and immediately seeing their progress.

Keep X-PAD at its best - select your service
X-PAD Ultimate software is always maintained without any extra costs. By keeping your X-PERT service active, you can continuously profit from the latest software improvements.

Reliable partner
Hexagon is known for driving innovation and technological progress. As a part of this group, GeoMax can guarantee that its solutions work when you do.

The SciAps X-550 sets a new performance standard for handheld XRF. It is the lightest, fastest, most articulate X-ray gun ever made. It delivers the small size, blazing speed, and high precision of the SciAps X Series in a perfectly balanced device. It is fast on all alloys, including aluminum. It is HUD-accepted for residential and commercial lead-based paint analysis and documented in the Performance Characteristic Sheet (PCS). The X-550 uses the industry’s most powerful X-ray tube. The unique geometry and tube power optimize performance for low atomic number measurement applications including sulfidic corrosion (low Si), phosphorus and sulfur, and aluminum alloys, as well as for residuals analysis per API 751 and 5L specifications.

Features:
No radioactive isotopes: Greatly reduces the burden of owning and controlling radioactive materials and costly replacement.
Highest levels of accuracy: No substrate corrections, no inconclusive ranges or tests, even for action levels as low as 0.5 mg/cm2.
Fastest tests : Test in 2-6 seconds, and never lose speed over time. Quick Mode preferred for PCS types of testing, and Timed Mode for industrial lead paint testing. Delivers PMI for most alloys in 1-2 seconds with excellent precision.
The Cloud, Connectivity, and Android: Built on Google’s Android platform for real-time data exporting.

Applications:
HUD-accepted for residential and commercial lead-based paint analysis
Alloy analysis
Soil analysis
Mining and mineral analysis
Industrial lead analysis

Specifications:

The All-In-One Survey Total Station and Scanner
The SX12 Scanning Total Station combines a total station and scanner into one superior instrument. Get everything you need from a robotic total station, along with high-end 3D laser scanning and imagery.

Features and Benefits
Save time, maximize efficiency and get more done in the field by capturing additional site information with scan data, images and point clouds.

Capture Once, Use Many Times
Capture more detail and document features you couldn’t before—never worry about field crews missing things ever again. Point cloud and images can be used anytime to extract data that might have not been considered at the time of collection, saving time and avoiding unnecessary site visits.

Collect with Cameras
Four built-in, high quality cameras with huge zoom allow you to capture a range of imagery.

• Capture reality with point clouds for accurate as-builts in inaccessible locations
• Geo-reference images of the site to record conditions in real-time
• Live site footage for real-time monitoring and quick decision making
• Eliminate the need for a separate camera on site
• Image scans of the same area on different dates allow users to visualize jobsite progress

Vivid, Eye-Safe Laser Pointer
The green laser pointer is exceptionally small, bright, and still eye safe—with auto focus functionality.

Capture Everything. Faster.
Get everything you need from a site and more in just minutes, saving you hours or days of surveying. With the additional site information from scan data, images and point clouds, you can avoid rework and costly site revisits.

A Robotic Total Station, and More
Achieve high accuracy and reliability for construction site positioning, stakeout and measurement without the need for a separate device onsite. This powerful combination of high accuracy surveying and 26,600 points-per-second 3D scanning is a game changer.

Reach the Inaccessible
Rapidly collect millions of points and dozens of photos to effectively capture reality for accurate as-builts in inaccessible locations. A great option for safer surveying and avoiding the hassle and time involved in gathering data from dangerous or difficult to reach locations.

Applications

With the SX12 you can:

• Collect millions of points for a 360 degree point cloud
• Control land topographic collection/measurements during site surveying
• Document every visible feature on a project, reducing costly site visits
• Check grade for inspection and monitoring
• Safely and efficiently scan road corridors and intersection details such as roadway surfaces, overhead power lines and lane markings
• Safely gather accurate survey data in trenches, on cliffs, near moving equipment, and in other hazardous areas without putting a surveyor in danger
• Capture rich, accurate and complete geometrical and visual documentation of as-builts

Construction-Ready 3D Laser Scanner
View scan data, 3D models and field layout points at the same time on a tablet controller while in the field.

Powerful Performance That is Easy to Use
Watch how simple it is to complete everyday scanning tasks using Trimble's X7 3D laser scanner powered by Trimble FieldLink.

Extend your BIM workflows and precisely capture accurate as-built conditions
Count on the X7 for guaranteed performance and accuracy so you can leave the site with total confidence in your data.

Increase Productivity
Manage your X7 with the same easy-to-use software as your layout process while also viewing scan data immediately in the field.

Reduce Downtime
Ensure data accuracy, eliminate downtime from annual calibration and provide a total lower overall cost of ownership.

Streamline Collaboration
Use Section View exports to send only the data you need to project stakeholders.


Powerful Performance with Simple Operation
Support a Variety of Tasks
No matter what you need to do, the X7 can do it. This includes: renovations, as-built verification, laser layout, precast set up verification, prefabrication skid QA/QC, post tension cable verification and more.
Full Visibility
View scan, model and layout data together in real-time to compare with actual field conditions.
Accurate Leveling Every Time
Automatic level detection ensures scans are level and provides the ability to scan upright or upside down.
Trimble Registration Assist
Increase your field productivity with full registration of the point cloud without any additional software.
Integrated Laser Pointer
Capture reference points to align scan data to the project coordinate system. Perform all your basic field layout tasks, from layout of field points to capturing measurements for QA/QC.
Automatic Calibration
Eliminate the need for annual calibrations – Reducing maintenance costs and downtime.

When you need the highest performance on all levels even under the most challenging conditions, the GeoMax Zoom50 series is the perfect choice for you.

With the proven accXess technology, the Zoom50 features an intelligent distance measurement engine designed for outstanding range, speed, and highest accuracy even under tough conditions.

The longer measurement range means a wider operational coverage and significantly less time lost with switching setups. The new "PowerLock“ protection mechanism prevents the use by unauthorized persons and makes it unattractive to steal.

All this in combination with the extra-wide color touchscreen, built-in Bluetooth®, USB memory stick support, and featured application package including even advanced functionalities makes the Zoom50 the true flagship of the Geomax manual total station family.

Colour and touch screen
• Large 3.5″ Q-VGA display
• Crystal clear experience
• Super fast navigation

Superior accXess10 EDM
• 1,000 m non-prism range
• Highest reliability & accuracy
• Pin size laser beam

Superior software
• Intuitive software
• Versatile, enhanced applications
• PowerLock theft protection

Features:
• “GeoMax Superior” powerful onboard SW
• “PowerLock” theft protection
• “SecureLock” Drives
• accXess EDM technology up to 1000m non-prism range.
• Quadruple Axis Compensation
• Coaxial visible laser beam
• Laser plummet
• High resolution, large Q-VGA color & touch display
• USB & RS232 Connection
• Built-in Bluetooth®
• USB memory stick
• 16 hours battery life
• Polar Option –30°C

Zoom50 accXess5: Long-range distance measurement on reflector and >500m non-prism*
Zoom50 accXess10: Ultra long-range distance measurement on reflector and > 1,000 m non-prism*

ANGLE MEASUREMENTS
Accuracy: 1” (0.3 mgon), 2” (0.6 mgon),5” (1.5 mgon)
Display resolution: 0.1” / 0.1 mgon
Method: Absolute, continuous,diametrical
Compensation: Quadruple axis

INTERFACE
Keyboard : Full alphanumeric, dual face (opt.)
Display : 3.5” Quarter-VGA color touch screen (320x240 pixel), 10 lines x 30 characters, self heating, illuminated
Data recording : Internal memory 50,000 pts
Interface : USB, serial & external power
Removable memory : USB memory stick
Bluetooth : Device Class1

DISTANCE MEASUREMENTS
Prism : 3,500 m / 2 mm 2 ppm
Long range : 10,000 m / 5 mm 2 ppm
Typ. meas. time : 1 s**
Non-prism : >500m accXess5 >1000m accXess10 2mm 2ppm***
Footprint : 8 x 20 mm****

POWER SUPPLY
Internal battery : Removable Li-Ion
Operating time****** : 36 h (continous angle), 16h (continous distance measurement every 30s)

PHYSICAL SPECIFICATIONS
Weight : 5.1 kg (incl. battery & tribrach)
Operating temp. : –30°C to 50°C*****
Protection class : IP55 dust and waterproof
Humidity : 95 %, non-condensing

PLUMMET
Type : Laser point, adjustable brightness
Accuracy : 1.5 mm at 1.5 m instrument height

OPERATING SYSTEM
Microsoft® : Windows embedded CE

* Optimal conditions to Kodak Grey Card (90% reflectivity)
** IR-Quick mode
*** >500m : 4 mm 2 ppm
**** At 50 m distance
***** Optional tested polar version, standard –20°C to 50°C
****** Battery time may be shorter depending on conditions.
All trademarks and trade names are those of their respective owners.

EN 60825-1; Laser plummet : Laser class 2 in accordance with IEC 60825-1 resp. EN 60825-1,
Distance meter (Non-Prism Mode accXess) : Laser class 3R in accordance with IEC 60825-1 resp. EN 60825-1

accXess (Select Range) : A5 (500m Reflectorless)   A10 (1000m Reflectorless)
Accuracy (Select Accuracy) : 5"   2"   1"
Software : COGO; Ref. Arc; Road 3D, Traverse; PIN/PUK

The Bruker S1 Titan 800 is Bruker's flagship handheld XRF analyzer, designed to quickly and accurately display the elemental analysis of your target sample. It also clocks in as one of the lightest, most powerful XRF analyzers currently available - weighing just under 1.5 kg with battery. Whether you are testing large machined parts, scrap metal or other products, the ergonomic pistol grip and trigger design allow for all-day "point-and-shoot" analyzing of materials.

Durable with the Latest Technology
The S1 Titan 800 features an integrated touch-screen color display, 50 kV X-ray tube, SMART Grade timing (for fastest and safest alloy identification), SharpBeam technology, Silicon Drift Detector (SDD) with CUBE™ technology (operating at very high count rates and thus provides excellent precision with short measurement times), and an extremely tough housing that is sealed against humid and dusty environments (rated IP54).  The graphene Window SDD provides fast and precise analysis with advanced detector technology.

Connectivity
The analyzer also comes with Bluetooth, Wi-Fi and USB connectivity. Data can be stored internally on the instrument or a USB flash drive.

Integrated Camera
The S1 Titan 800 is equipped with an integrated camera (640 x 480 pixels) to provide sample visualization and accurate location of the measurement spot. There is a small spot option for the S1 Titan 800 that provides a small measurement area for the isolation of small features being tested.

Software
Each S1 Titan 800 ships with Bruker's Instrument Toolbox, the PC software suite for controlling and communicating with the analyzer. The unit can be remotely controlled via Wi-Fi or USB so you can communicate with the instrument and manipulate data. Included are a report generator, spectrum viewer, grade table editor and the ability to install software & calibration updates.

Accessories
The S1 Titan 800 can come with optional Bluetooth wireless accessories including an external GPS receiver providing GPS coordinates of the assay, a portable, rugged thermal printer, and a barcode reader.

Add-On Packages
The S1 Titan 800 features add-on calibration packages for measuring the following types of materials :

Metals Alloy PMI

• Alloys with Light Elements - Includes type specific calibrations for stainless steels, tool steels, low alloy steels, nickel alloys, cobalt alloys, copper alloys, zinc alloys, light (Al, Mg and Ti) alloys and general calibration for all other alloy types.
• Precious Metals - Au, Ag, Pt, Pd based alloys including KARAT library (single phase).

Geo/Minerals/Mining/Industrial Minerals

• GeoExploration - Multiphase application package including GeoExploration calibration for Geochemical exploration and GeoMining for mining and ore processing.
• Limestone - Calibration on Limestone and Dolomitic Limestone reporting Mg and Ca Carbonate, normalized for use both on powder and solid rock, cement and gypsum applications.
• Heavy Metals and Nutrients in Soil - Heavy metals in soil, dual phase calibration for environmental compliance and elemental nutrients in soil.

Food Safety & Environment

• Restricted Materials - Restricted materials, consumer products calibration package with light element capability (Al-Bi). For all ROHSII, CPSIA, PROP65, WHEE compliance applications. Includes Auto mode and user selectable calibrations for plastics, mid-density materials and metals. Includes Plastic and Solder check sample. Measures Cl and Br and can also be used for Halogen free testing.
• Maritime Sulfur - MARPOL measurement of Sulfur in maritime Fuels 0.01-1% wt. % S.
• Industrial Lead in Paint - Reports lead in paint as area concentration mg/cm².
• Food Safety - Application Package includes calibrations to measure foodstuff, packaging, and food contact materials. Includes an alloy application to allow PMI and shavings ID, Adapted Restricted Materials Application.
• Food Quality - For nutrients and fortificants in foodstuffs.
• Filter and Dust Wipe - Measures hazardous elements on air filters and lead wipe test dust wipes.

Feature:

• Available calibrations include: alloy, gold, and precious metals, bulk material (E‐scrap and catalytic converters), soil, mining, restricted materials, and customer specific
• Superior large area graphene window SDD detector technology
• Superior count rates and resolution (compared to previous generation SiPIN instruments)
• Faster than previous generations
• Lower detection limits
• Easy analysis of light elements, such as magnesium, aluminum, and silicon, without the need for vacuum or helium atmosphere (S1 TITAN 800 and 600 only)

Package includes:

• Bruker S1 Titan 800 Handheld XRF Analyzer
• Two (2) high performance Li-Ion batteries with smart charger
• USB stick for data storage and easy reporting
• Bruker Instrument Toolbox software package for reporting, qualitative spectral analysis, live spectrum functionality, flexible grade table, user field editor and remote instrument control
• 5 spare PROLENE™ protective windows
• Extensive manuals and safety video
• Waterproof and pressure equilibrated PELICAN™ transport case
• 2 year standard warranty (Extendable to 5 year total Protection)

The result of over 10 years of proven leadership in modular NDT test platforms, the OmniScan MX has been the most successful portable and modular phased array test instrument produced by Olympus to date, with thousands of units in use throughout the world.

Olympus now offers a new PA module with TOFD, a new UT module, as well as new software programs (NDT SetupBuilder and new OmniPC version) that expand the capabilities of the successful OmniScan MX2 platform and improve the workflow efficiency of nondestructive testing inspections.

Building on a Solid Basis
This second generation OmniScan MX2 increases testing efficiency, ensuring superior, advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with more than 10 phased array and ultrasound modules. Designed for NDT experts, this high-end, scalable platform delivers true next-generation NDT performance.

The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance—all in a portable, modular instrument.

Faster Is Better!
Powerstart your day with the OmniScan MX2. The OmniScan MX2 simplifies and speeds up the setup process with its intuitive step-by-step Wizard, so you can start testing quickly. Featuring the industry-standard phased array user interface with faster-than-ever performance, a bigger and brighter 10.4 in. (26.4 cm) screen, new and unique intuitive touch-screen capabilities, and faster data transfer, the MX2 enables you to get to your next inspection quicker.

More than an Instrument-A Solution Provider
The OmniScan MX2 is an important part of your inspection solution, and can be combined with other critical components to form a complete inspection system. Olympus offers a complete product range that includes phased array probes, scanners, analysis software, and accessories, all of which are integrated and packaged into rapidly deployable, application-specific solutions for a quick return on your investment. In addition, Olympus offers a high-quality global calibration and repair service, backed by a team of phased array application experts to ensure that you get the support you need.

Pressure Vessel Weld Inspection
A complete inspection of pressure vessel welds can be performed in a single scan using an OmniScan PA and manual scanner such as the HSMT series or a motorized scanner like the WeldROVER. By combining TOFD and PA in a single inspection pass, a significant reduction in inspection time can be achieved as compared with conventional raster scanning or radiography. Furthermore, inspection results are available immediately, enabling you to detect problems with welding equipment and fix them right away.

Composite Inspection
Parts made of laminate composite materials pose an inspection challenge due to their various shapes and thicknesses.
Olympus offers complete solutions for the inspection of carbon-fiber-reinforced polymer structures. These solutions are based on the OmniScan flaw detector, the GLIDER™ scanner, and dedicated probes and wedges designed for CFRP flat panel and radius inspection.

Weld Inspection of Small-Diameter Pipes
When coupled with the COBRA manual scanner, the OmniScan flaw detector is capable of inspecting pipes ranging from 0.84 in. OD to 4.5 in. OD. With its very slim design, this manual scanner is able to inspect pipes in areas with limited access. Adjacent obstructions such as piping, supports, and structures can be as close as 12 mm (0.5 in.).

Manual and Semiautomated Corrosion Mapping
The OmniScan PA system with the HydroFORM scanner is designed to offer the best inspection solution for detecting wall-thickness reductions resulting from corrosion, abrasion, and erosion. In addition, this system detects mid-wall damage, such as hydrogen-induced blistering and manufacturing-induced delamination, and clearly differentiates such anomalies from loss-of-wall-thickness.
For this application, phased array ultrasound technology offers superior inspection speed, data point density, and detection.

Modular Instrument
A Platform that Evolves as your Needs Grow
Designed to secure both your current and future phased array investments, the OmniScan MX2 houses more than 10 different Olympus modules. You can be confident that you will get the most out of your investment as specifications will continue to evolve with your needs through constant software updates.

State of the Art PA2 and UT2 Modules
As a world leader in phased array technology, Olympus has released a new line of modules compatible with MX2 instrument.

PA2
The new phased array offer-led by the new innovative PA2 modules, features multiple improvements, such as:

Best Phased Array and TOFD Signal Quality Ever

• Better signal-to-noise ratio
• More powerful pulsers
• 64 pure gray tone

More Multi-group Capabilities

• Ability to use PA and UT channels simultaneously

General Hardware Improvements

• Higher operating temperatures (45 °C)
• New OmniScan probe connector with quick latch system
• Designed for IP66 environmental rating
• Extended autonomy on batteries

UT2
The new conventional ultrasound module features the same UT-channel technology as the PA2 modules, but offers twice as many channels.

The FARO Scanner Freestyle3D X is especially designed for challenging scanning projects which require highest accuracy. It is suitable for all applications in which demanding projects must be quickly scanned from various perspectives. The high-precision 3D scan data can easily be imported into all commonly used software solutions for architecture, accident reconstruction, civil engineering, construction, facility management, forensics or industrial manufacturing.

Faro Freesytle 3D X Application

• Architecture & Interior Design
• Measurements of complex structures and objects
• Project supervision
• Deformation monitoring
• Quality control
• Restoration & 3D Modelling
• Area construction progress monitoring
• Built environment
• Free-form components inspection
• Deformations control
• Reverse engineering
• Restoration & Conservation
• Construction & Facility Management
• Documentation
• Planning of structural alterations
• Re-planning of technical modifications
• Reconstruction
• Forensic
• Crime scenes investigation & analysis
• Digital proof collection
• Accessibility
• Body mapping
• Blood spatter analysis
• Fire Investigation
• Accident Reconstruction
• Traffic accident investigation & analysis
• Passive safety of cars
• Collision reconstruction
• Digital proof collection
• Digital accessibility

Features:

• Xtra accuracy: The verifiable accuracy of 1mm enables you to carry out highly challenging scanning projects.
• Optional on-site calibration: The device can be easily calibrated on-site ensuring high quality data. A PDF report with key data permits maximum and verifiable confidence in the acquired data.
• Automatic flash: The new auto mode automatically activates and de-activates the built-in LED light depending on the existing light conditions.
• Real-time point cloud visualization: The real-time point cloud visualization supports the intuitive data acquisition, even for untrained operators.
• Up to 8m³ scanning volume: The extensive scan volume boosts productivity by reducing scan time.
• Best point filter: The new best point filter minimizes the noise and allows to get optimum data quality.
• 3D point accuracy*: ≤ 1.0mm
• Indoor scanning volume: Up to 8m³
• IP rating: IP52**
• Operating temperature range: 0 – 40°C

Package includes :

• Faro Freesytle-3D X Scanner
• Tablet Surface Pro 3 (Microsoft)
• License Scene (Capture & Process) with 1 year Maintenance contract
• MicroSD card, USB card reader
• Calibration plate
• Cleaning kit
• Rugged Transport Case
• 1 Year manufacturer warranty

The Fluke 810 Vibration Tester is an advanced troubleshooting tool for mechanical maintenance teams who need an answer now. Its unique diagnostic technology helps you quickly identify and prioritize mechanical problems, putting the expertise of a vibration analyst in your hands.

You take pride in your facility, your team, and your work. You do what it takes to keep things up and running, but sometimes there is not enough time or resources to keep up with the workload, let alone be proactive about mechanical maintenance. The Fluke 810 Vibration Tester puts you one step ahead by using a simple step-by-step process to report on machine faults the first time measurements are taken, without prior measurement history. The combination of diagnoses, severity and repair recommendations help you make informed maintenance decisions and address critical problems first.

Industry-Leading Training on Your Terms
The Fluke 810 Vibration Tester takes the guesswork out of diagnosing the most common mechanical problems, but a better understanding of vibration and its impact on your equipment will help you or your team be more aware of issues that may come up in the future. Fluke has partnered with Mobius Institute, an industry leader in vibration training, to provide you with a self-paced DVD training program using award-winning Mobius Institute interactive training tools. This DVD is available with purchase and will help you learn more about the basics of vibration and how to fully utilize the features and functionality of the Fluke 810 Vibration Tester.

Key Features:

• Troubleshoot problem equipment and understand root causes of failures
• Survey equipment before and after planned maintenance and confirm repairs
• Commission new equipment and ensure proper installation
• Provide quantifiable proof of equipment condition and drive investment in repair or replacement
• Prioritize and plan repair activities and operate more efficiently
• Anticipate equipment failures before they happen and take control of spare parts inventories
• Train new or less-experienced technicians and build confidence and skill across entire team
• On-board identification and location of most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root causes, reducing unplanned downtime
• Fault severity scale with four severity levels help you prioritize maintenance work
• Repair recommendations advise technicians on corrective action
• On-board, context sensitive help provides real-time tips and guidance to new users
• 2 GB expandable on-board memory provides enough space for your machinery's data
• Self-test function ensures optimal performance and more time on jobs
• Laser tachometer for accurate machine running speed promotes confident diagnoses
• Tri-axial accelerometer reduces measurement time by 2/3, over single axis accelerometers
• Viewer PC Software expands data storage and tracking capacity

Included in Package:

• 1 - Vibration Tester
• 1 - Tri-Axial TEDS Accelerometer
• 1 - Accelerometer Magnet Mount
• 1 - Accelerometer Mounting Pad Kit with Adhesive
• 1 - Accelerometer Quick-Disconnect Cable
• 1 - Laser Tachometer with Storage Pouch
• 1 - Smart Battery Pack with Cable and Adapters
• 1 - Shoulder Strap
• 1 - Adjustable Hand Strap
• 1 - Viewer PC Software
• 1 - Mini-USB to USB Cable

Essential performance, range, accuracy and speed
500k pts/sec Scanning Speed
80m Standard, 120m Extended Scanning Range
Integrated HDR camera, 10 MP resolution Imaging
Essential performance – effective high speed scanning with consistent accuracy over the full scan range. The Trimble TX6 delivers superior performance compared to other similarly priced scanners
High quality data – quickly capture clean data even in bright sunlight. Be confident you will get the quality data you need with less setups to complete the project
Integrated HDR camera – Trimble VISION™ technology provides fast image capture to colorize scans with minimal impact on field productivity
Integrated WLAN – enables wireless remote operation from Windows, Apple and Android mobile devices.
Effective ranges – choose from standard 80 meter range or upgrade to extended 120 meter range to match the standard scan range of the Trimble TX8
Easy to operate – the intuitive onboard interface makes the TX6 easy to learn, reducing startup time. Users will immediately build confidence to successfully complete projects

Performance
500,000 points per second with no compromise on scan quality or range
Typical high density scan time of only 5 minutes
Integrated HDR camera to colorize scans
Easy to use onboard interface with no complex parameters
Integrated WLAN for remote operation from any mobile device
Robust design with IP 54 rating for demanding environments
Upgradeable from 80m standard to 120 meter extended range

Applications
Building Information Modeling (BIM)
Virtual Design Construction (VDC)
Pre-construction as-builts
Quality control
Preservation and restoration
Deformation monitoring
Plant and industrial measurement
Public safety and forensics

Software
The Trimble TX6 streamlines work in the office as well. The scanner’s clean, low-noise data reduces processing time. That data loads directly into Trimble RealWorks® software and Trimble Scan Explorer,enabling project collaboration via Internet Explorer. The Trimble TX6 paired with RealWorks also provides efficient data flow into popular CAD programs, Trimble EdgeWise and SketchUp® for point cloud modeling.

With hundreds of units used throughout the world, the R/D Tech OmniScan MX is Olympus NDT’s most successful modular and portable phased array and eddy current array test unit. The OmniScan family includes the innovative phased array and eddy current array test units, as well as the eddy current and conventional ultrasound modules, all designed to meet the most demanding requirements of NDT. The OmniScan MX offers a high acquisition rate and powerful software features in a portable, modular mainframe to efficiently perform manual and automated inspections.

Rugged, Portable, and Battery-Operated
The OmniScan is built to work in the harshest field conditions. Its solid polycarbonatebased casing and rubber bumpers make it a rugged instrument that can withstand drops and shocks.
The OmniScan is so compact and lightweight (only 4.6 kg) that it can be carried easily and handled anywhere inside or outside. The OmniScan will run 6 hours with its two Li-ion batteries.

User Interface
The highly legible 8.4-inch real-time display (60-Hz A-scan refresh rate) with a SVGA resolution of 800 x 600 allows you to clearly see defects and details under any light conditions. A scroll knob and function keys make it easy to browse through and select functions. A mouse and a keyboard can also be plugged in for users looking for a more PC-like interface.

Modular Platform
The instrument is a modular platform that allows you to switch among its different test modules on location. The platform detects the new module and the technology supported so that the configuration and test environment are set automatically.

OmniScan Connector
The OmniScan connector has a probe ID feature that enables physical detection and recognition of the probe connected to the mainframe.

• Sets the probe to an appropriate frequency to prevent probe damage
• Sets C-scan resolution of ECA probes
• Loads the correct probe parameters

Typical Applications

Girth Weld Inspection
Olympus NDT has developed a circumferential weld inspection system based on the OmniScan PA for the oil and gas industry. This phased array system is qualified to inspect tube with diameters ranging from 48 mm to 1524 mm and thicknesses from 5 mm to 25 mm in compliance with ASME Boiler and Pressure Vessel Code Section V. The semiautomated system offers better inspection speed and detection, and makes the interpretation of the indications significantly easier.

Pressure Vessel Weld Inspection
The combination of time-of-flight diffraction (TOFD) and pulse-echo techniques means that the complete inspection is done in a single scan, significantly reducing the inspection time when compared to conventional raster scanning or radiography. Inspection results are available instantaneously, allowing you to spot a problem with the welding equipment and fix it right away. Based on our vast experience in the nuclear and petrochemical industries, this system includes all the functions that are needed for code-compliant weld inspections.

Scribe Marks Inspection with No Paint Removal
The Flight Standards Information Bulletin for Airworthiness (FSAW 03-10B), issued on November 2003, report damage along fuselage skin lap joints, butt joints, and other areas of several aircraft caused by the use of sharp tools used during paint and sealant removal.
The OmniScan allows the scribe marks inspection to be done without paint removal which is a huge time saver. The inspection is done in a single pass using 60º to 85º SW sector scans. OmniScan PA is now referenced in the Boeing NTM manuals, 737 NDT Manual, Part 4, 53-30-06, July 2005.

Aircraft Fuselage Inspection
The OmniScan ECA (eddy current array) provides the ability to detect hidden corrosion and cracks in multilayer structures. Currently, material loss of 10% of the lap splice thickness can be detected in aluminum at a depth of 0.2 in. Surface and subsurface cracks can be detected in the skin, at the fastener, or at the lap joint edges.

Ultrasound Inspection

Time-of-Flight Diffraction (TOFD) Testing
TOFD is a technique that uses two probes in pitch-and-catch mode. TOFD detects and records signals diffracted from defect tips for both detection and sizing. The TOFD data is displayed in a grayscale B-scan view. TOFD offers wide coverage and amplitudeindependent sizing compliant with the ASME-2235 code.

• One-line scan for full-volume inspection
• Setup independent of weld configuration
• Very sensitive to all kinds of defects and unaffected by defect orientation

Time-of-Flight Diffraction (TOFD) and Pulse-Echo Testing
While TOFD is a very powerful and efficient technique, it suffers from limited coverage resulting from two dead inspection zones: one dead zone is near the surface, the other is at the backwall.
OmniScan UT allows inspections simultaneously combining TOFD with conventional pulse echo. Pulse echo complements TOFD and covers the dead zones.

• TOFD inspection
• 45º pulse-echo for weld cap inspection on either sides of the weld
• 60º pulse-echo for weld root inspection on either sides of the weld

0-Degree Testing (Corrosion and Composite)
The 0-degree testing measures time-offlight and amplitude of ultrasonic echoes reflecting from the part into gates in order to detect and measure defects.

• C-scan imaging
• Full A-scan recording with C-scan postprocessing

Ultrasound Transducers
Olympus NDT offers thousands of transducers in standard frequencies, element diameters, and connector styles.

• Contact and immersion transducers
• Dual transducers
• Angle beam transducers and wedges
• Replaceable delay line transducers
• Protected-face transducers
• Normal incidence shear wave transducers

Phased Array Inspection

Phased Array Technology
Phased array technology generates an ultrasonic beam with the capability of setting beam parameters such as angle, focal distance, and focal point size through software. Furthermore, this beam can be multiplexed over a large array. These capabilities open a series of new possibilities. For instance, it is possible to quickly vary the angle of the beam to scan a part without moving the probe itself. Phased arrays also allow the replacement of multiple probes and even mechanical components. Inspecting a part with a variable-angle beam also maximizes detection regardless of the defect orientation, while optimizing signalto-noise ratio.

Benefits of Phased Arrays
Phased array technology offers the following capabilities:

• Software control of beam angle, focal distance, and spot size
• Multiple-angle inspection with a single, small, electronically-controlled multielement probe
• Greater flexibility for the inspection of complex geometry
• High-speed scans with no moving parts

Eddy Current Inspection

Eddy Current Technology
Eddy current (ECT) technology is a noncontact method for the inspection of metallic parts. In this technique, the probe, which is excited with an alternating current, induces eddy current in the part being inspected. Any discontinuities or material property variations that change the eddy current flow in the part are detected by the probe as a potential defect.

Over the years, probe technology and data processing have continuously progressed so that the eddy current technique is now recognized to be fast, simple, and accurate. This is why the technique is widely used in the aerospace, automotive, petrochemical, and power generation industries for the detection of surface or near-surface defects in material such as aluminum, stainless steel, copper, titanium, brass, Inconel®, and even carbon steel (surface defect only).

Benefits of Eddy Current
Eddy current offers the following capabilities:

• A quick, simple, and reliable inspection technique to detect surface and near-surface defects on conductive material
• Can be used to measure electrical conductivity of the material.
• Measurement of nonconductive coating
• Hole inspection with the use of highspeed rotating scanner and surface probe

Eddy Current Probes
Olympus NDT standard eddy current probes are available in different configurations:

• Bolt hole probes
• Surface probes, in various shapes and configurations
• Low-frequency Spot and Ring probes
• Sliding probes
• Wheel probes
• Conductivity probes
• Speciality probes made for specific applications

The laser shaft alignment tool for every workshop

OPTALIGN touch was designed by some of the world’s leading alignment experts to solve problems in the easiest way possible. Featuring the unique sensALIGN 5 laser and sensor heads, it enables powerful, fast, and efficient ways to align machine shafts.

Designed for standard machines and everyday tasks, OPTALIGN Touch combines hardware, software, and WiFi connectivity to deliver precise alignment data via the cloud. Its intuitively guided user interface can be operated by almost anyone – users just need to follow the three steps for any laser shaft alignment procedure: dimensions, measure, and result.

The OPTALIGN Touch offers all well-known PRUFTECHNIK features necessary for every day alignment jobs: SWEEP mode measurement, simultaneous Live Move, InfiniRange, flip machines functionality, soft foot detection, dynamic tolerance (TolChek), thermal growth compensation and many more.

Adaptive Alignment for any maintenance workshop

·         Single-laser technology sensALIGN 5 featuring continuous SWEEP mode, Live Move, and InfiniRange

·         Active Situational Intelligence speeds every alignment task

·         WiFi and Bluetooth communication

·         Continuous SWEEP measurement mode: Automatic collection of alignment data during shaft rotation

·         Live Move: simultaneous real-time machine corrections in both horizontal and vertical directions

·         Automatic evaluation of the alignment condition (Dynamic Tolerance)

·         Soft foot check – measure, correct, and save results

·         InfiniRange extends detector measurement range to handle gross misalignment and large coupling separation distances

·         Fully featured with all shaft alignment relevant functions

·         Upgrade with sensALIGN 7 laser/sensor heads: the whole world of PRUFTECHNIK’s adaptive alignment features becomes available

Key benefits:

·         Work faster without sacrificing accuracy

With intuitive setup and data acquisition and an easy-to-use handheld device, even complex alignment jobs can be done quickly with no loss in accuracy and precision.

·         Leverage advanced laser shaft alignment capabilities

The powerful hardware and software features in the OPTALIGN touch simplify the way you perform mounting, measuring, and shimming.

With mistake-correcting capabilities, this tool adapts to both the alignment challenge and experience level of the user.

·         Transfer data to and from the cloud

Send and receive alignment data from and to the ARC 4.0 PC software via an integrated WiFi connection. Monitor and trend your data for analysis and action.

sensALIGN technology

The sensALIGN Series technology is based on the inherent PRUFTECHNIK single laser technology providing highly precise measurement results and easy mounting and measuring in the field. sensALIGN 5 sensors include two HD large position-sensitive detectors (PSD) and MEMS inclinometers. Combined with the detector extension capability (InfiniRange), it is always possible to measure and document the initial alignment condition; no matter how big is the misalignment. Furthermore, this technology allows the simultaneous monitoring of the machine corrections in vertical and horizontal directions, starting from any angular position where the sensor comes to stop.

What's new?

touch device Firmware Version 2.5

·         ANSI tolerances available for Short flex and Spacer coupling types

·         Resolution available in both 2DP and 3DP (Metric)

·         Report print preview

·         Report new section: Measurement equipment serial number and due calibration date

·         Tolerance screen accessible directly from Results view

·         Context sensitive help ‘?’ button directly accessible within main workflow screens

·         "Add feet" button available in stationary machine properties

Please note: touch device firmware version 2.5 strictly requires ARC 4.0 software version 2.5 to communicate.

How to upgrade your firmware?

touch device - ALI 50.200 upgrade procedure

·         Please ensure the touch device is charged or has at least 50% battery capacity.

·         Unzip file to empty PRUFTECHNIK USB memory stick. Firmware is stored in "touch" folder.

·         Switch on the touch device. Wait for Home screen to appear.

·         Connect USB memory stick to the touch device USB port. New firmware copied from USB memory stick to the touch device.

·         After approximately 1 minute on-screen message box appears stating new upgrade firmware found. Tap green tick button to start upgrade. Remove USB memory stick from the touch device.

·         The touch device restarts and firmware upgrade begins.

·         After completion of firmware upgrade the touch device restarts and finishes in Home screen
