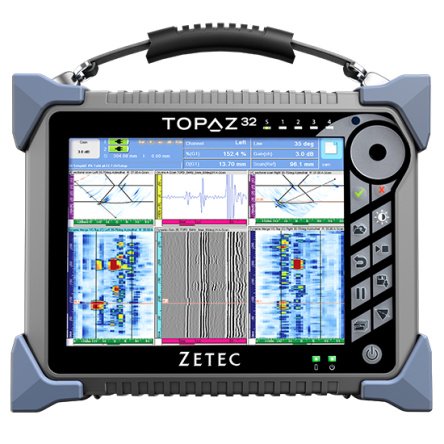

Zetec TOPAZ32 Portable Phased Array UT Instrument (New) - Sale!

TOPAZ32 is a 32-channel, high-performance phased array UT device — a complete solution for your inspections. Optimally designed for Oil & Gas, Power Generation, Manufacturing and Transportation applications, TOPAZ32 boosts productivity, reduces job time duration and can lower total cost of ownership.

Inspection advantages
One of the many key advantages of the new TOPAZ32 is that 2D matrix array probe support is now included without the need of any external software. This fully-integrated and simplified approach can reduce the amount of equipment needed to perform an inspection.
With its rugged construction and airtight magnesium and rubber housing, TOPAZ32 is durable enough to handle inspections in even the harshest conditions. It’s lightweight, making it portable enough to go wherever you need to carry it.

Powered by UltraVision software
With UltraVision touch software embedded in TOPAZ32, everything you need for advanced setups and analysis is in one instrument. Visit the UltraVision Touch page to learn more about the software features.
High-performance acquisitions, high speed and fast processing. TOPAZ32 is one of the most efficient and versatile non-destructive testing (NDT) instruments in the market.

A fully integrated, portable solution
TOPAZ32 enables users to effectively complete the following, all from one unit:
PREPARE specimen and weld for inspection and calibrate set-up. The visual feedback of the on-board shape editor and advanced focal law calculator allows easy setup creation and optimization
ACQUIRE data real time in a range of views on the multi-touch screen. The calibration process is made easy with a complete calibration tool. Superior hardware specifications allow for the most efficient encoded data acquisition process of any portable PA system on the market
ANALYZE the data in different views and automatically produce a table of indications. A full set of basic (cursors, readings) and advanced (merge, C-Scan stitching, gate selectors, volumetric contour, thickness thresholding, etc) analysis tools are available on-board with fully-configurable display layouts
REPORT in different levels to meet specific requirements. Ready-to-print custom PDF reports, including hardware settings, scan plan and indication information, are generated with a single touch

Optimized layouts make it easier
The advanced processing features of the TOPAZ32 onboard calibration provide optimized layouts to facilitate phased array calibration for sensitivity, wedge delay, Time Corrected Gain (TCG) and velocity for each angle.

Calibration status keeps users informed
Before acquisition begins, TOPAZ32 displays the calibration status for all channels (groups). If the relevant symbol on the display is not in green, this indicates that the related parameter has not been calibrated. Only when all symbols are green can scanning and data acquisition commence.

Data displayed in real time for quick analysis
TOPAZ32 displays data in real time, during acquisition even volumetric merged views. With a wide range of predefined, onboard layouts to present data users can create their own layout to meet specific requirements or personal preferences.

A smart investment
An advanced 64-bit on-board computer substantially improves the power of the instrument reducing typical processing times by up to 50% at setup creation, calibration or reporting

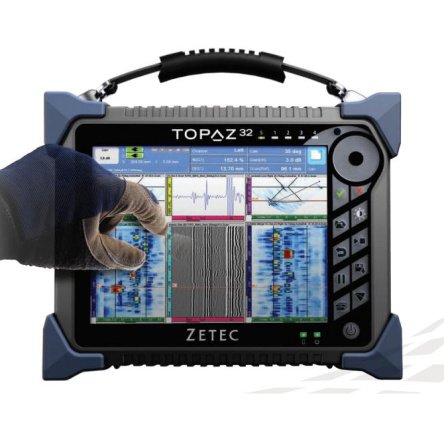

The ultra-bright touchscreen is crystal clear whether indoors or outside in direct sunlight and can be operated even when wearing gloves
Getting started with TOPAZ32 couldn’t be easier — with a logical graphical interface, users interact just like they would with a smartphone or a tablet
Configuration is simple as well — connect any Zetec scanner or accessory such as a probe to TOPAZ32 and it will automatically recognize and preconfigure accordingly, saving valuable time and resources


FEATURES
TOPAZ32 is packed with features designed to improve productivity, reduce analysis time and lower total cost of ownership.

ULTRA-BRIGHT TOUCH DISPLAY
Resolution is 64% better than standard displays
Offers 33% more surface than 16:9 displays with the same diagonal
Dedicated outdoor setting delivers amazing visibility, even in direct sunlight

POWERFUL COMPUTING
New 64-bit onboard computer reduces processing time by up to 50% vs. previous versions

ONBOARD CALCULATOR
Configure inspections on complex specimens like axial or circumferential welds, including different weld profiles supports
Supports 2D martrix array probes without additional external software

PERFORMANCE PROCESSING
2GB data file size capability improves inspection efficiency
Create as many inspection groups as needed with up to 1024 focal laws
Multiple data files can easily be merged together
C-Scan data from different files can be consolidated with the "Data Stitching Tool"

16-BIT AMPLITUDE RESOLUTION
Signals can be digitized using an 800% FSH scale. This reduces the chances of re-scan due to signal saturation during the acquisition

ULTRAVISION TOUCH EMBEDDED
Advanced focal law calculator with visual feedback allows for easy setup preparation
Onboard volumetric merge and measurement tools enable powerful data analysis and inspection report generation

FAST DATA ACQUISITION SPEED
64-bit computing power combined with an onboard SSD (solid state drive) allow you to perform challenging inspections with large data files, all without compromising acquisition speed

RUGGED AND LIGHTWEIGHT
The housing is designed so there is no air intake
The removable external fan optimizes heat dissipation
This design prevents dust, humidity or contamination from getting inside. Plus the unit weighs a total of 6kg so it goes anywhere

2D MATRIX ARRAYS
The UltraVision Touch calculator now supports 2D matrix array probes without using external software

COMPOUND SCANNING
Sectorial and linear scanning combine to increase the covered inspection area while reducing scanning time

TIME REVERSAL SUPPORT
The first portable instrument to support the Time Reversal technique, which simplifies complex inspections of composite materials

SEAMLESS INTEGRATION
Connect any Zetec scanner or probe to TOPAZ32 and it will automatically recognize the accessory and preconfigure accordingly

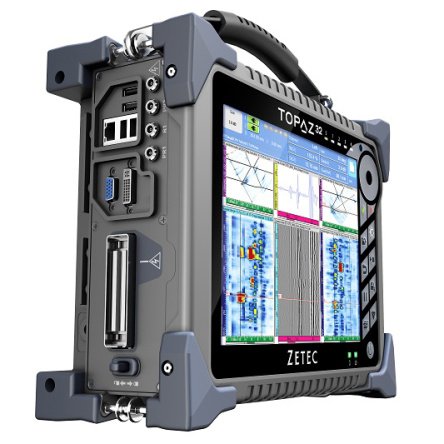

FAST DATA TRANSFER
One USB 3.0 port
Three USB 2.0 ports
GB Ethernet Connector

HIGHLY EFFICIENT DUAL INSPECTION
Two high quality dedicated UT channels allowing conventional UT (pulse-echo, pitch-and-catch, or TOFD) and Phased Array inspections to be carried out simultaneously

FAST, LOW NOISE AND SAFE PROBE CONNECTIONS
Quality PA UT connector with a solid and secure probe latch

• Availability: In Stock
• Model: TOPAZ32
• Brand:
