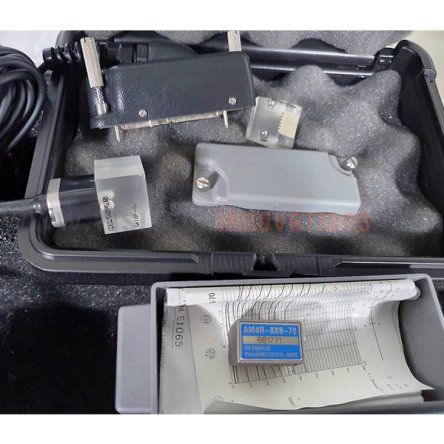

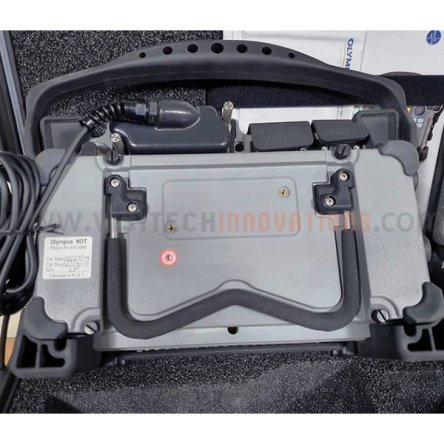

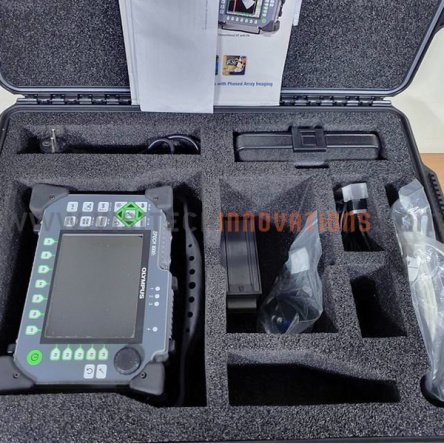

Olympus Epoch 1000i Ultrasonic Phased Array Flaw Detector (Used) - Sale!

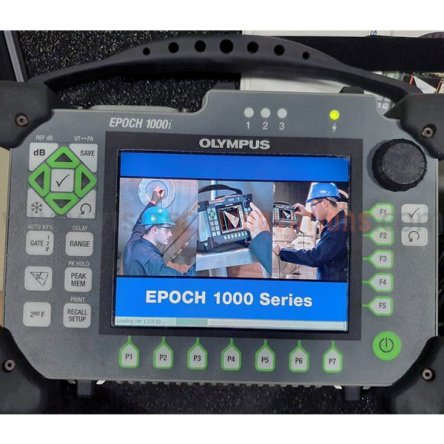

The EPOCH 1000 series digital ultrasonic flaw detectors combine the highest level of performance for conventional portable flaw detection with the power of phased array imaging. The EPOCH 1000, 1000iR, and 1000i feature a horizontal case design with full VGA display, knob and navigation arrows for parameter adjustment, and full EN12668-1 compliance. The advanced conventional ultrasonic functionality of the EPOCH 1000 series has been enhanced with phased array imaging capabilities in the EPOCH 1000i.

Upgradeable to Phased Array

The EPOCH® 1000, EPOCH 1000iR, and EPOCH 1000i provide advanced conventional ultrasound capabilities for both basic and advanced level users. These portable instruments can also be integrated into small systems for high-speed scanning and single-channel imaging and come standard with a host of high-performance features, including a 6 kHz maximum Pulse Repetition Frequency (PRF) with single-shot measurements for accurate high-speed scanning applications, tunable square wave pulser with PerfectSquare™ technology, and comprehensive digital filter sets for exceptional signal-to-noise clarity.

Features:

Adjustable pulse repetition frequency (PRF): 5 Hz to 6 kHz

Single-shot measurements in all standard modes

Tunable square wave pulser with PerfectSquare™ technology

Programmable analog and alarm outputs

Over 30 digital filter sets

Digital high dynamic range receiver

Specifications:

General Specifications

Overall dimensions: (W x H x D) 252 mm × 177 mm × 107 mm (9.92 in. × 6.97 in. × 4.2 in.)

Keypad: English, International, Japanese, Chinese

Languages: English, Spanish, French, German, Japanese, Chinese, Russian, Italian, Polish

Transducer connections BNC or Number 1 LEMO

Data storage: Onboard up to 10,000 IDs with waveform, standard 4 GB compact flash card (removable)

Battery type: Single lithium-ion rechargeable standard

Battery life: 8 hours (conventional UT mode); 7 hours (phased array mode)

Power requirements: AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 Hz to 60 Hz

Standby mode: Adjustable from 15 minutes to 120 minutes with 50% less battery consumption

Display type: Full VGA (640 × 480 pixels) Transflective Color LCD, 60 Hz update rate

Display dimensions (W x H, Diag.): 132.5 mm × 99.4 mm, 165.1 mm (5.2 in. × 3.9 in., 6.5 in.)

Inputs/Outputs

USB ports: 1 USB Client, 3 USB Host ports

RS-232: Yes

Video output: VGA output standard

Analog output: 4 analog outputs, Selectable 1V/10V Full Scale, 4 mA max

Alarm output: 6 alarm outputs, 5V TTL, 10 mA

Trigger I/O: Trigger input 5V TTL; trigger output, 5 V TTL, 10 mA

Encoder inputs 2-axis encoder line (quadrature)

Environmental Ratings

IP rating: Designed to meet requirements of IP66

Explosive atmosphere: Tested to MIL-STD-810F, Method 511.4, Procedure 1. Atmosphere defined per NFPA 70, Article 500 as Class I, Division 2, Group D.

Shock tested: IEC 600689-2-27, 60 g’s, 6 µsec Half-Sine, 18 Axes total

Vibration tested: Sine vibration, IEC 60068-2-6, 5 Hz to 150 Hz @ 0.03 in. or 2 g’s Displacement Amplitude, 20 sweep cycles

Operating temperature: –10 °C to 50 °C (14 °F to 122 °F)

Battery Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Battery Recharge temperature: 0 °C to 40 °C (32 °F to 104 °F)

Pulser

Pulser type: Tunable Square Wave

PRF: 5 Hz to 6,000 Hz in 5 Hz increments

Energy settings 50 V to 475 V in 25 V increments

Pulse width: Adjustable from 45 ns to 5,000 ns (0.1 MHz) with PerfectSquare Technology

Damping 50 Ω, 100 Ω, 200 Ω, 400 Ω

Pulser delay: Not applicable

Receiver

Gain: 0 to 110 dB

Maximum input signal: 20 Vp-p

Receiver input impedance: 400 Ω ± 5%

Receiver bandwidth: 0.2 MHz to 26.5 MHz @ –3 dB

Receiver delay NA

Digital filter settings Standard filter set (EN12668-1 Test & Compliant): 7 filters

Advanced filter set (not tested to EN12668-1): 30 filters

Rectification: Full wave, positive half wave, negative half wave, RF

Reject: 0 to 80% FSH with visual warning

Amplitude measurement: 0% to 110% full-screen height with 0.25% resolution

Measurement rate: Equivalent to PRF in all modes

Calibration

Automated calibration

• Velocity, Zero Offset

• Straight Beam (first back wall or echo-to-echo)

• Angle Beam (Soundpath or Depth)

Test modes: Pulse Echo, Dual, or Through Transmission

Units: Millimeters, inches, or microseconds

Range: 3.33 mm to 26,808 mm (0.131 in. to 1054.1 in.) at 5900 m/s (0.2320 in./µs)

Velocity: 635 to 15, 240 m/s (0.0250 to 0.6000 in./µs)

Zero offset: 0 µs to 750 µs

Display delay: –59 mm to 25,400 mm (–2.323 in. to 1000 in.)

Refracted angle 0° to 85° in 0.1° increments

Gates

Measurement gates: Two fully independent gates for amplitude and time-of-flight measurements

Measurement mode: Soundpath

Interface gate: Optional, with Gate 1 and Gate 2 tracking

Gate start: Variable over entire displayed range

Gate width: Variable from gate start to end of displayed range

Gate height: Variable from 2% to 95% full-screen height

Alarms

• Positive and negative threshold

• Minimum depth

Reference cursors: Two reference cursors for A-scans

Measurements

Displayed measurement: Six locations available (manual or auto selection)

Gate 1: Thickness, soundpath, projection, depth, amplitude, time-of-flight, min./max. depth, min./max. amplitude

Gate 2: Same as Gate 1

IF gate (Optional): Thickness

Echo-to-Echo: Standard. Choose between Gate2-1, Gate2-IF, and Gate1-IF

Other measurements: Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for DGS/AVG, AWS D1.1/D1.5 rating (D), reject value

DAC/TVG: Standard

DAC points: Up to 50 points, 110 dB dynamic range

Special DAC modes: 20% to 80% DAC, Custom DAC (up to 6 curves)

TVG table: Up to 50 points, 110 dB dynamic range, compatible with IF Gate at all PRF settings

Curved surface correction: Standard. Tube or bar OD correction for angle beam measurements

Weight: 3.67 kg (8.1 lb), including lithium-ion battery

• Availability: In Stock
• Model: Epoch 1000i
