$2,735.55
The smallest and lightest laser scanners on the market.
Focus3D X Series are ideal tools for indoor and outdoor applications. The fast and accurate laser scanners Focus3D offer everything you might expect from professional 3D laser scanners – with FARO’s established and well-known level of simplicity. Focus3D X 330 offers extra long range - 330m. The HDR imaging function and high-resolution photographs deliver realistic and true-to-detail scan results with spectacular image quality.
FARO Focus X130 has similar characteristics as Faro Focus 3D 120 S. Compared to its predecessor has built-in GPS module, laser operates at a different wavelength and especially is included in the 1st safety class. Another advantage is the reduction of noise in scans by more than half. Resolution of built-in camera remained unchanged, i.e.70 MPX. Model X330 as the name reveals has a range up to 330m and also has a built-in laser of 1st safety class and the GPS module. In addition to a large range up to 330 m can be used even in direct sunlight. Thanks to these improvements facilitate the scanning and the processing of collected data.
Key Features:
Ranging unit
Unambiguity interval: >130m
Range Focus3D X 130: 0.6m – 130m indoor or outdoor with upright incidence to a 90% reflective surface
Measurement speed (pts/sec): 122,000 / 244,000 / 488,000 / 976,000
Ranging error1: ±2mm
Colour unit
Resolution: Up to 70 megapixel colour
Dynamic colour feature: Automatic adaption of brightness
Parallax: Co-axial design
Deflection unit
Field of view (vertical/horizontal): 300° / 360°
Step size (vertical/horizontal): 0.009° (40,960 3D-Pixel on 360°) / 0,009° (40.960 3D-Pixel on 360°)
Max. vertical scan speed: 5.820rpm or 97Hz
Laser (optical transmitter)
Laser class: Laser class 1
Wavelength: 1550nm
Beam divergence: Typical 0.19mrad (0,011°) (1/e, halfangle)
Beam diameter at exit: Typical 2.25mm (1/e)
Data handling and control
Data storage: SD, SDHC, SDXC; 32GB card included

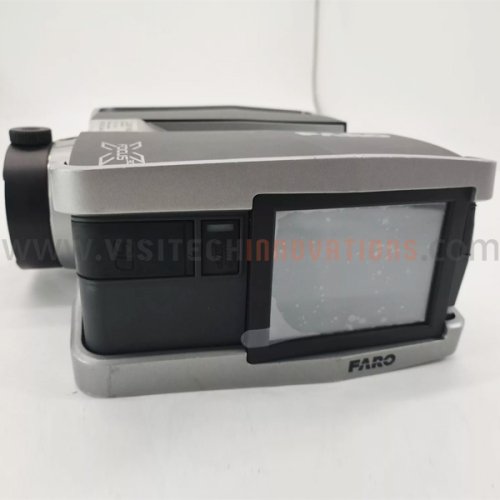

Scanner control: Via touchscreen display and WLAN
New WLAN access: Remote control, scan visualisation are possible on mobile devices with Flash®
Multi-Sensor
Dual axis compensator: Levels each scan: Accuracy 0.015°; Range ± 5°
Height sensor: Via an electronic barometer the height relative to a fixed point can be detected and added to a scan.
Compass4: The electronic compass gives the scan an orientation. A calibration feature is included.
GPS: Integrated GPS receiver
Power supply voltage: 19V (external supply) / 14.4V (internal battery)
Power consumption: 40W and 80W (while battery charges)
Battery life: 4.5 hours
Ambient temperature: 5° – 40°C
Humidity: Non-condensing
Cable connector: Located in scanner mount
Weight: 5.2kg
Size: 240 x 200 x 100mm
Maintenance/calibration: Annual
Includes:

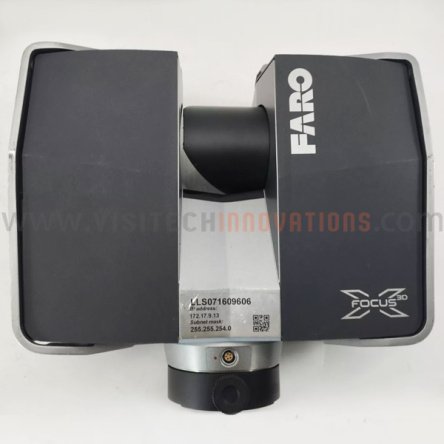

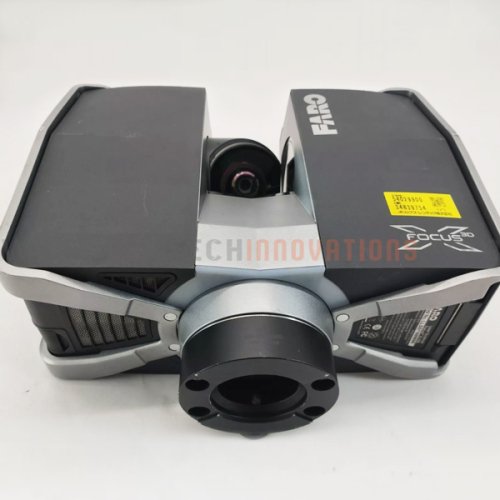

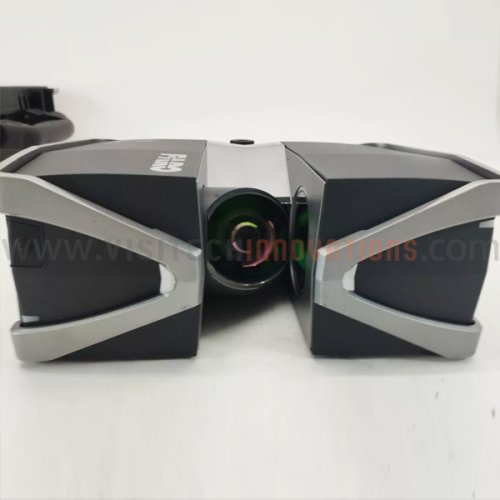

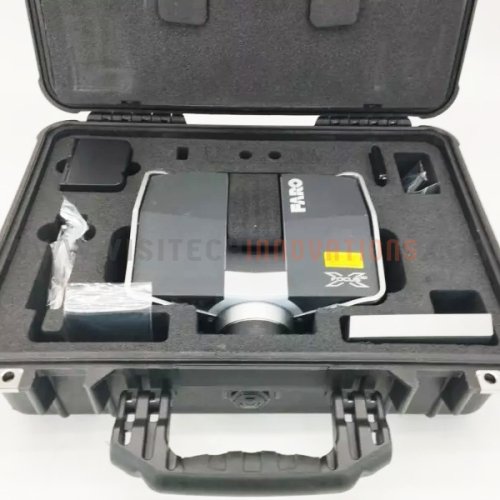

FARO Focus3D-X130, with GPS, Compass, Altimeter (barometer), Dual-axis Compensator and WLAN

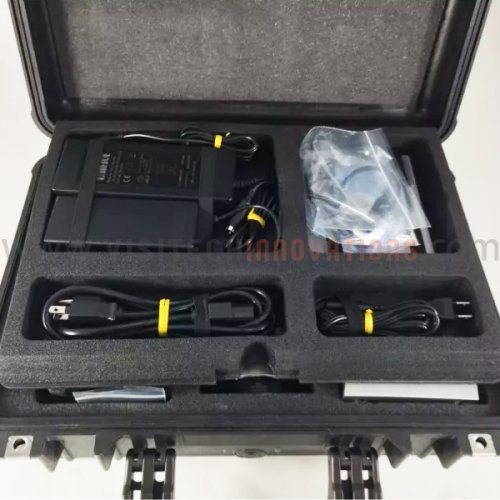

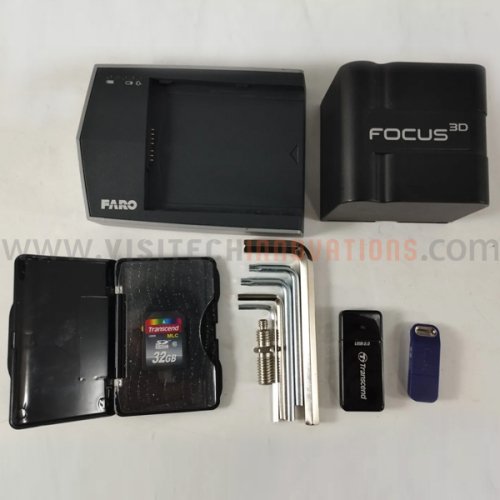

PowerBlock Battery
Power Supply
32GB SD Card
SD Card Reader
SD Card Cover

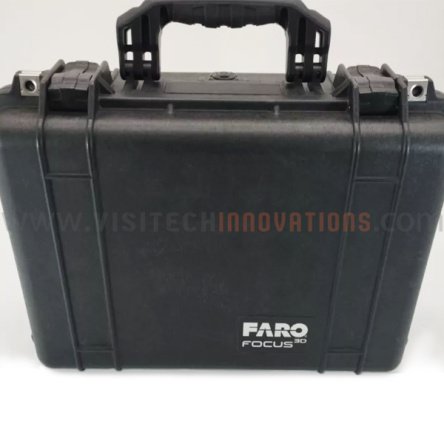

Rugged Transport Case

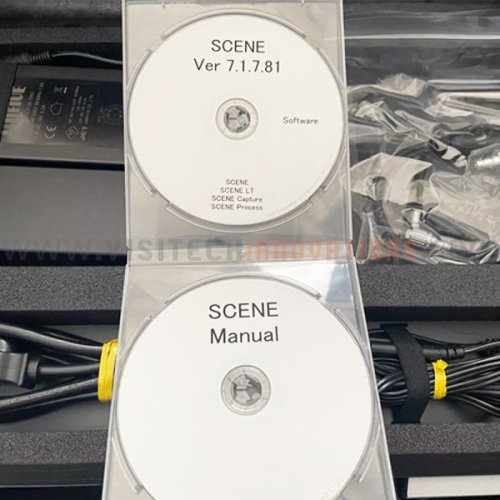

License SCENE Software
1 Year Maintenance Contract for SCENE Software

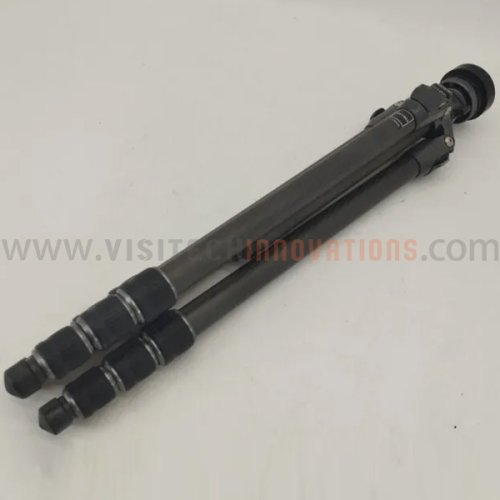

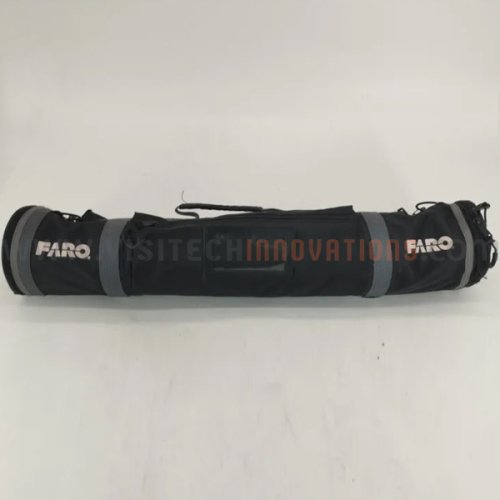

Gitzo Mountaineer carbon fiber tripod
Rugged Transport Case
- Availability: In Stock
- Model: Focus 3D X 130
-
